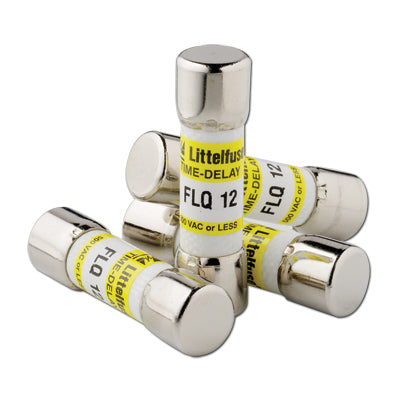

Littelfuse FLQ.800 LFSE FLQ.800 FUS 500V T/D MIDGET .8 Replacement MPN

Product Description

The Littelfuse FLQ.800 fuse is designed for use in various applications requiring control power transformers, solenoids, and circuits with high inrush currents. This time-delay fuse holds a voltage rating of five hundred volts AC and an amperage of zero point eight amps. It is a key component ensuring supplemental protection in electrical systems.

• 500 volt AC time-delay fuses
• Non-indicating design
• UL and CSA ratings for safe operation

Product Highlights

This fuse provides robust protection and is suited for applications that involve control transformers and circuits experiencing high inrush current.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: FLQ.800

Technical Specifications

• Voltage Rating: 500 VAC / 300 VDC
• Amperage Rating: 0.8 A
• Response Time: 5 seconds
• Body Size: 13/32 inches diameter x 1.5 inches length
• Body Type: Cylindrical
• Material: Melamine
• Mounting Type: Clip
• Interrupt Rating: 10 kA
• Application: Control transformers, small motors
• Standards/Approvals: UL File No. E10480, CSA LR29862
