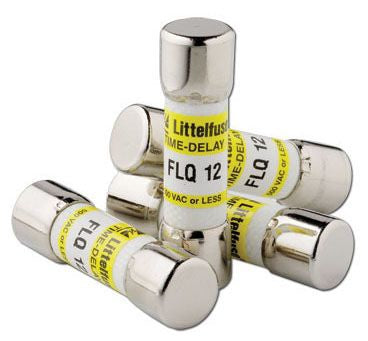

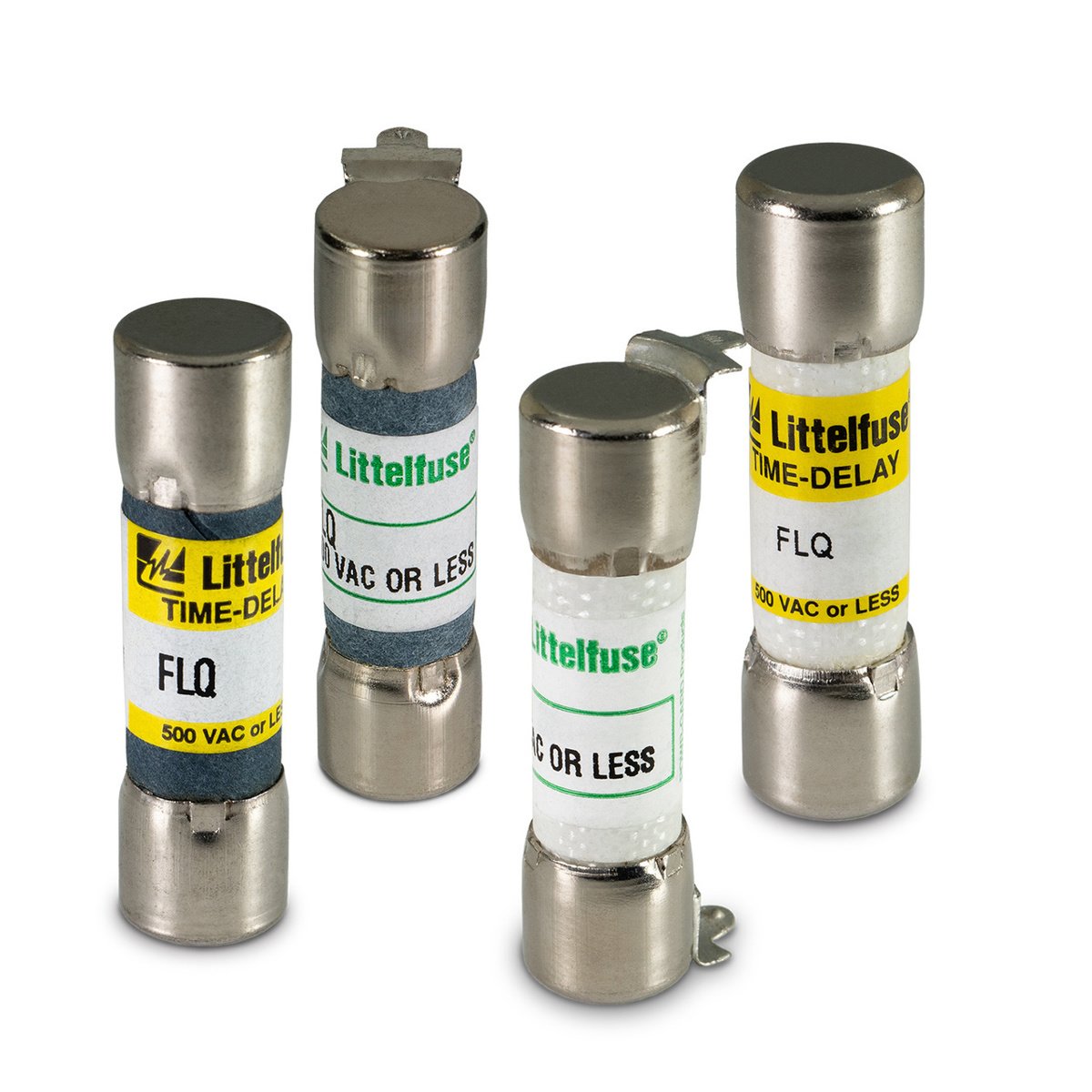

Littelfuse FLQ.300 TIME DELAY 500V AC FUSE

Product Description

The Littelfuse FLQ.300 is a time delay midget fuse designed to provide reliable protection for control power transformers, solenoids, and circuits experiencing high inrush currents. This fuse is part of the POWR-GARD FLQ series and is rated for five hundred volts AC. It features a non-indicating design and is suitable for various electrical applications.

• Time-delay fuse to prevent nuisance blowing
• Interrupt rating of ten kA for added safety
• Dimensions of thirteen thirty-seconds inches in diameter by one and one-half inches in length

Product Highlights

This time delay midget fuse is ideal for supplemental protection in control circuits, ensuring operational safety for devices such as transformers and solenoids.

Product Information

Standard Information

• Catalog Number: FLQ.300
• Manufacturer: Littelfuse

Technical Specifications

• Amperage Rating: 0.3 A
• Voltage Rating: 500 VAC / 300 VDC
• Body Size: 13/32 in Diameter x 1-1/2 in Length
• Body Type: Cylindrical
• Interrupt Rating: 10 kA
• Material: Melamine
• Mounting Type: Clip
• Response Time: 5 s
