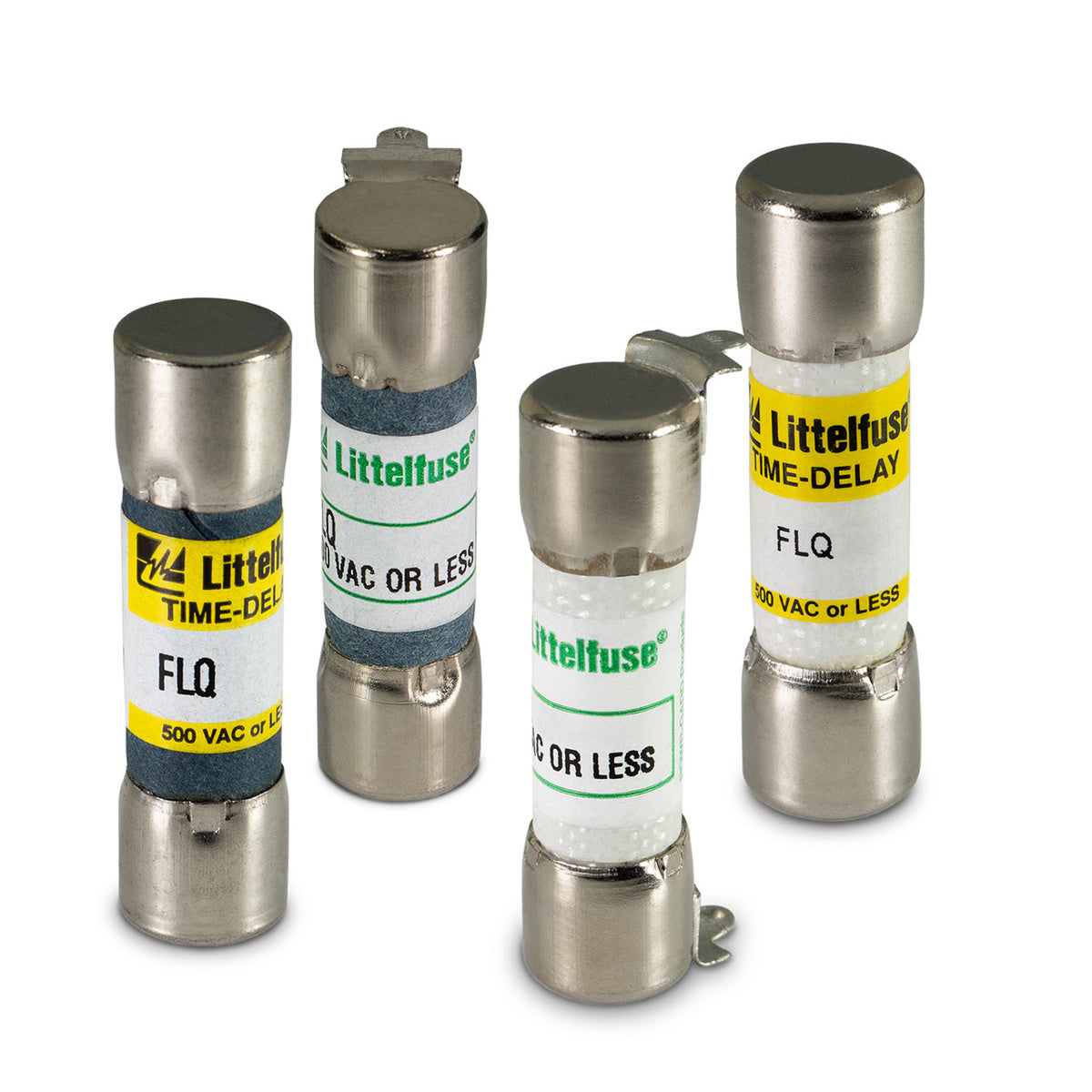

Littelfuse FLQ.150 Midget Time Delay Fuse 500V 0.15A Supplemental Protection

Product Description

The Littelfuse FLQ.150 is a cylindrical midget time-delay fuse designed to offer enhanced protection for control power transformers, solenoids, and circuits experiencing high inrush currents. This 500V rated fuse, manufactured by Littelfuse, excels in applications requiring delayed response to temporary overload conditions.

• Supplemental protection for diverse applications
• 500VAC/300VDC rating suitable for high voltage circuits
• Time-delay feature manages inrush currents effectively

Product Highlights

This fuse offers a delayed response to current overload, enhancing protection for sensitive components. It's built with robust melamine material and features nickel-plated copper alloy caps for reliability in challenging conditions.

Product Information

Standard Information

• Brand: Littelfuse
• Series: POWR-GARD FLQ Series

Technical Specifications

• Voltage Rating: 500 VAC/300 VDC
• Interrupt Rating: 10 kA
• Amperage Rating: 0.15 A
• Body Size: 13/32 in Dia x 1-1/2 in L
• Mounting Type: Clip
• Response Time: 5 s
• Terminal Type: Ferrule
• Indicating/Non-Indicating: Non-Indicating
