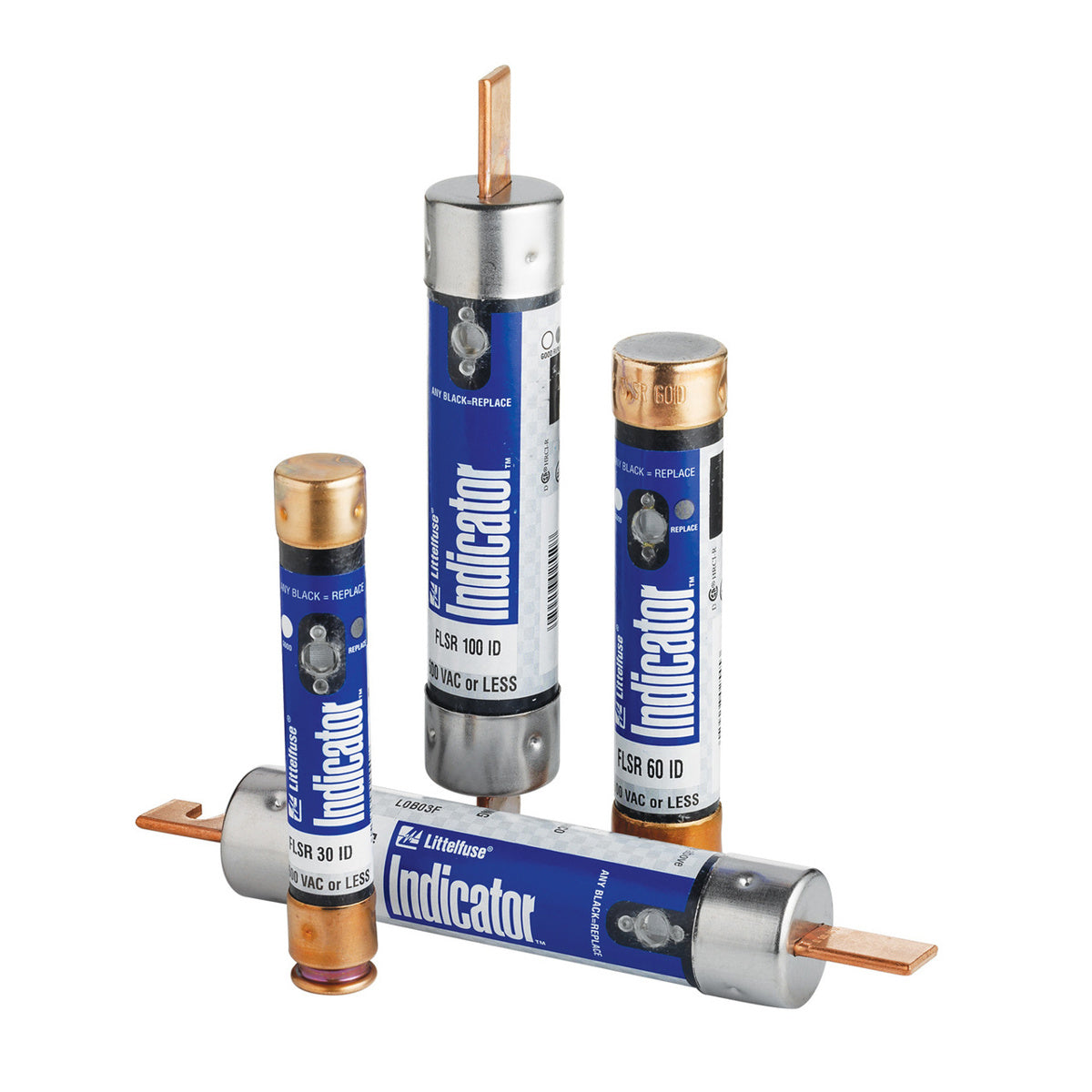

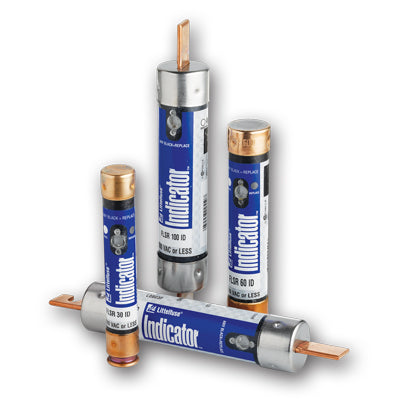

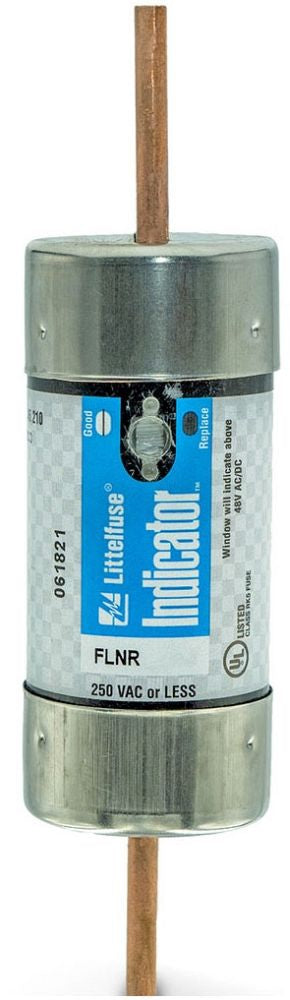

Littelfuse FLNR350ID Time Delay Fuse 350 AMP 250 VAC Class RK5

Product Description

The Littelfuse FLNR350ID is a time delay fuse designed for effective overload and short circuit protection. With a current rating of three hundred fifty amps and a voltage rating of two hundred fifty VAC, it serves multiple applications including service entrance switches and distribution panelboards.

• Reduces downtime with quick blown fuse indication.
• Features time-delay properties for reliable cycling.
• Constructed to UL 248-12 standards for safety compliance.

Product Highlights

The FLNR350ID fuse features a dual-element design that minimizes unnecessary interruptions while ensuring enhanced protection across circuits. Its visual blown fuse indication improves safety and efficiency for operational management.

Product Information

Standard Information

• Catalog Number: FLNR350ID
• Manufacturer: Littelfuse

Technical Specifications

• Amperage Rating: 350 A
• Voltage Rating: 250 VAC / 125 VDC
• Interrupt Rating: 300000 A
• Body Size: 2-3/32 inches diameter x 8-5/8 inches length
• Terminal Type: Blade
• Type: Class RK5
• Application: General Purpose
• Special Features: Time-Delay
