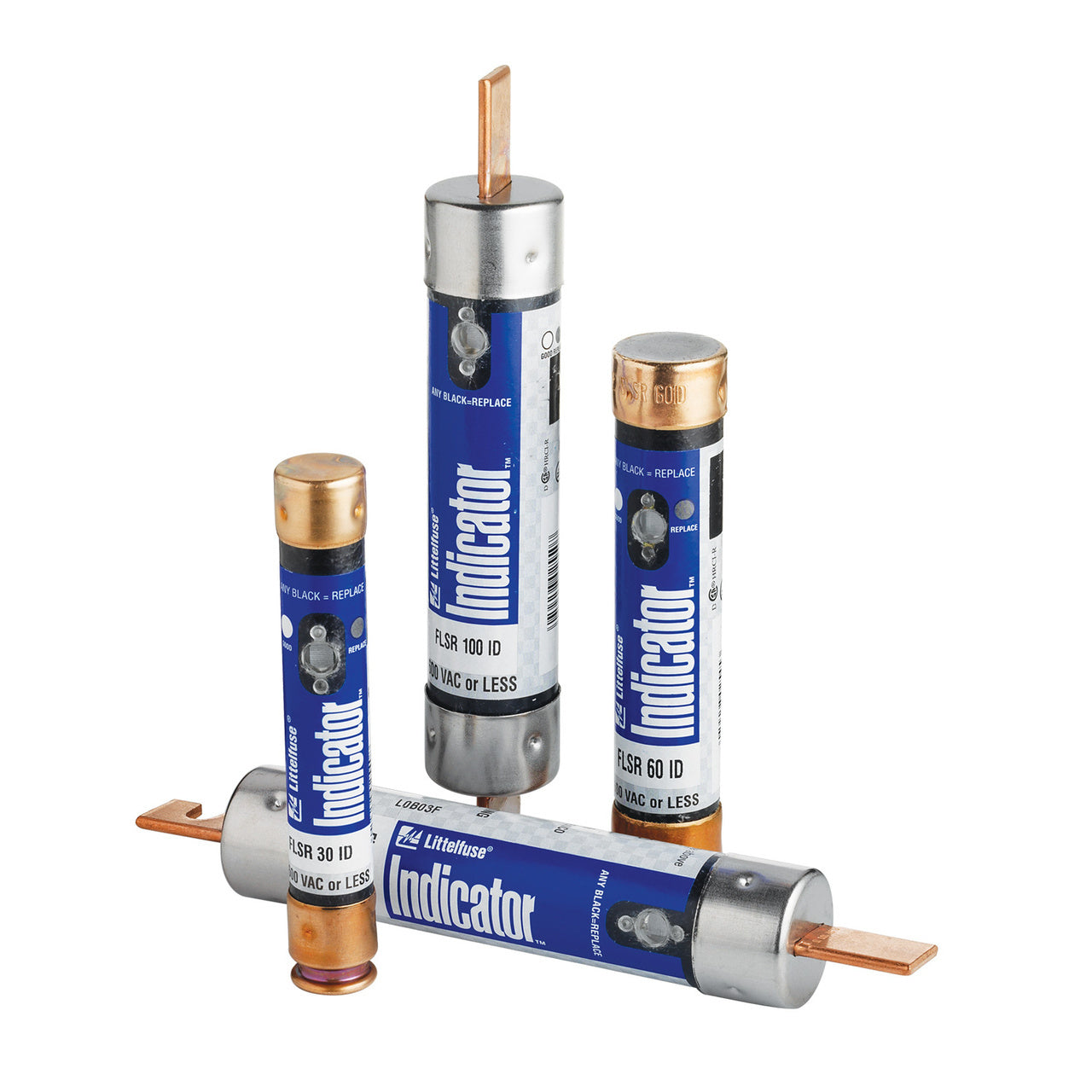

Littelfuse FLNR225ID Current Limiting Time Delay Fuse 225 A 250 VAC/125 VDC

Product Description

The Littelfuse FLNR225ID is a 225 Amp current limiting time delay fuse designed for general purpose applications. This fuse features a dual-element design that provides reliable performance and effective overload protection. The patented design provides superior performance characteristics for various electrical needs.

• Visual blown fuse indication for quick diagnostics.
• Time-delay functionality reduces nuisance tripping.
• Cylindrical body with blade terminal type for easy installation.

Product Highlights

The Littelfuse FLNR225ID is ideal for service entrance switches, transformers, and motor control circuits. It features a maximum interrupting rating of two hundred thousand amperes, making it suitable for high-load scenarios.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Sub Brand: POWR-GARD FLNR Series

Technical Specifications

• Catalog Number: FLNR225ID
• Amperage Rating: 225 A
• Voltage Rating: 250 VAC/125 VDC
• Interrupting Rating: 200000 Ampere (Symmetrical)
• Response Time: 10 s
• Body Size: 2-3/32 in Diameter x 8-5/8 in Length
• Approval: UL 248-12, CSA
• Application: General Purpose
• Country of Origin: Mexico
