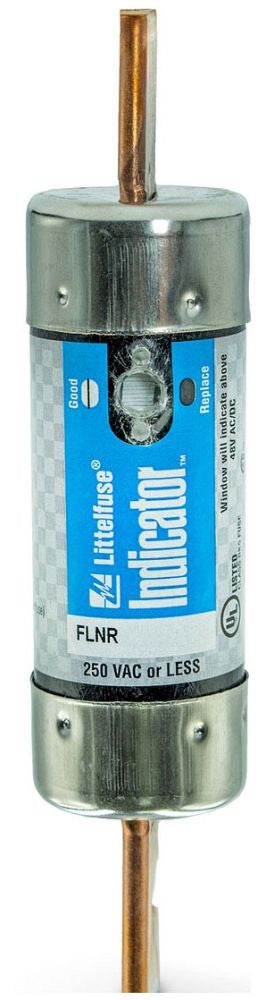

Littelfuse FLNR200ID FUSE - FLNR 200A CLASS RK5 DUAL ELEMENT TIME DL W INDICATION

Product Description

The Littelfuse FLNR200ID is a 200 Amp, dual-element time delay fuse designed for both AC and DC applications. This fuse offers reliable protection for circuits requiring safety and efficiency. The indicator feature allows for quick visual checks to determine when the fuse has blown. It is ideal for use in service entrance switches, distribution panelboards, and motor control circuits.

• 200 Amp rating, suitable for multiple applications
• Time-delay design to handle temporary overloads
• Visual indication for easy troubleshooting

Product Highlights

The FLNR200ID fuse reduces downtime by allowing operators to check for blown fuses without tools. With superior overload protection, it can save costs and prevent equipment damage.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Catalog Number: FLNR200ID

Technical Specifications

• Type: Current Limiting
• Amperage Rating: 200 A
• Voltage Rating: 250 VAC/125 VDC
• Body Size: 1-19/32 in diameter x 7-1/8 in length
• Interrupt Rating: 200 kA (AC), 20 kA (DC)
• Frequency Rating: 50/60 Hz
• Element: Dual
• Application: Service Entrance Switches, Transformers, Motor Control Branch Circuits
