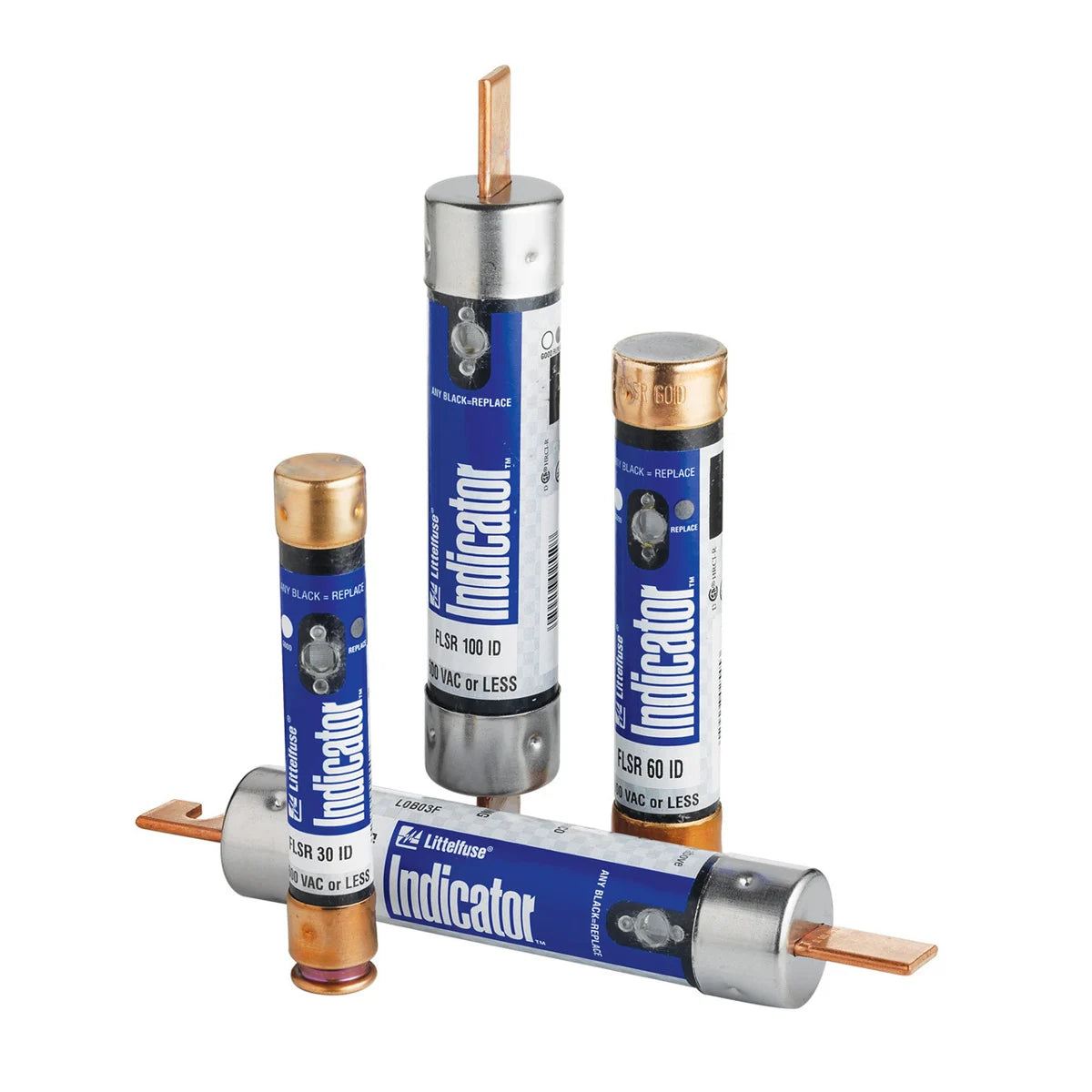

Littelfuse FLNR150ID Time Delay Fuse 150A 250VAC/125VDC Class RK5

Product Description

The Littelfuse FLNR150ID time delay fuse is designed for applications requiring reliable overload and short circuit protection. This fuse has a 150 amp capacity and operates at 250 volts AC and 125 volts DC. The dual-element design allows for effective time-delay operation, minimizing nuisance opening and equipment damage. With its built-in indication feature, this fuse provides a visual indication of a blown fuse, enhancing safety and reducing downtime.

• 150 amp capacity
• Visual indication of blown fuse
• Dual-element design minimizes nuisance openings

Product Highlights

Perfect for service entrance switches, transformers, and motor control circuits.

Product Information

Standard Information

• Catalog Number: FLNR150ID
• Manufacturer: Littelfuse

Technical Specifications

• Amperage Rating: 150 A
• Voltage Rating: 250 VAC/125 VDC
• Interrupt Rating: 200/20 kA
• Body Size: 1-19/32 inches Diameter x 7-1/8 inches Length
• Frequency Rating: 50/60 Hz
• Rejection: Rejection Type
• Terminal Type: Knife Blade
• Standards/Approvals: UL 248-12, CSA LR29862
