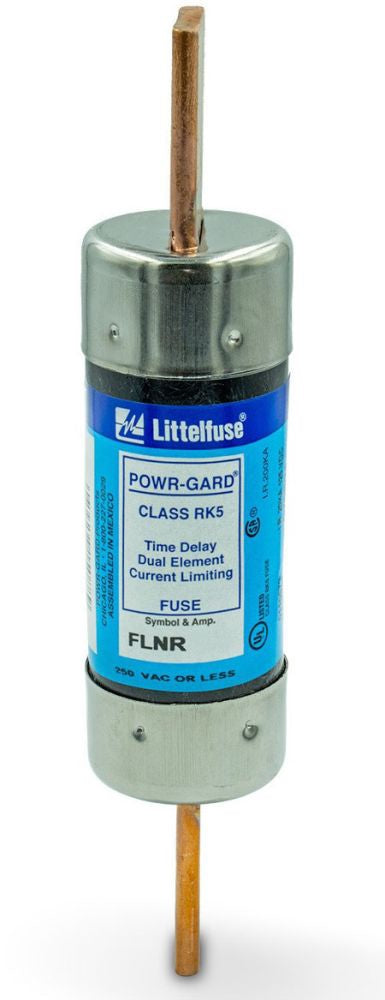

Littelfuse FLNR125 Time Delay Fuse 125 Amp 250 VAC 125 VDC Class RK5 Dual Element

Product Description

The Littelfuse FLNR125 is a Class RK5 time delay fuse, designed to provide superior circuit protection. Rated for 125 Amp and dual voltage operation at 250 VAC and 125 VDC, this fuse offers reliable performance for industrial settings.

• Dual element design enhances protection against overcurrents.
• Time-delay feature allows temporary surge tolerance, preventing unnecessary interruptions.
• Engineered for applications including motor control circuits and general-purpose usage.

Product Highlights

Utilizing a cylindrical body, the FLNR125 measures approximately 7-1/8 inches in length and 1-19/32 inches in diameter, crafted from robust materials that guarantee consistent operation even under stress. It's an essential component for systems requiring precise overload protection with delayed trip functionality.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: FLNR125
• Class: RK5

Technical Specifications

• Voltage Rating: 250 VAC/125 VDC
• Amperage: 125 Amp
• Interrupt Rating: 200kA at 250VAC, 20kA at 125VDC
• Body Material: Fiberglass
• Body Dimensions: 7-1/8 inches length x 1-19/32 inches diameter
• Indicator: Non-indicating
