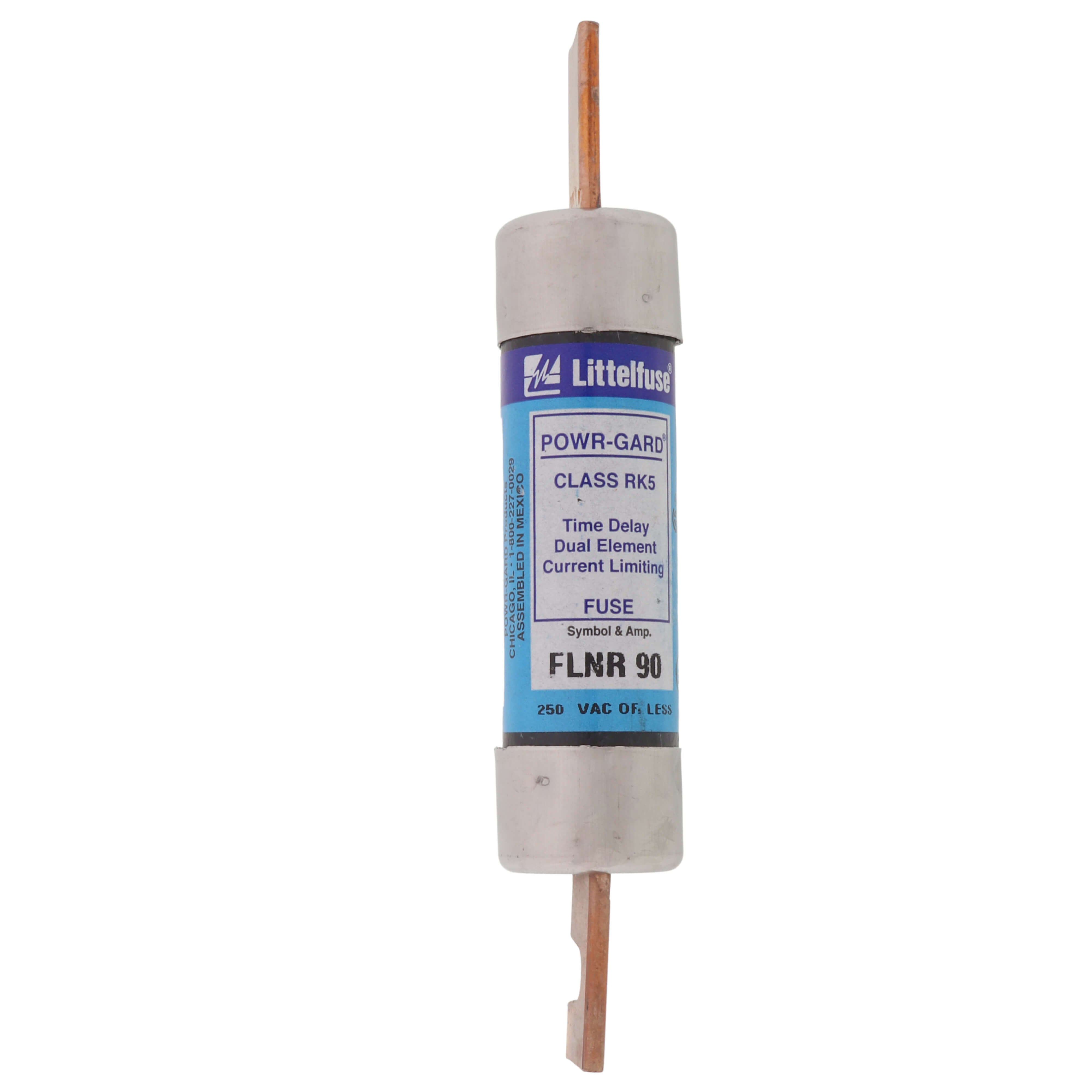

Littelfuse FLNR090 Fuse 250V 90 Amp Time Delay

Product Description

The Littelfuse FLNR090 is a Class RK5, 90 Amp fuse, designed for dual element time-delay operation. It supports voltages up to 250 VAC and 125 VDC and is well-suited for circuits, especially those with motors, requiring reliable overcurrent protection.

• Exceptional interruption capability up to 200,000 amperes
• Precise and dependable overloads and short circuit response
• Time-Delay feature for handling transient spikes without nuisance blowing

Product Highlights

This fuse operates under a voltage of 250 VAC/125 VDC and offers a time-delay functionality, ideal for industrial uses involving higher transient currents. It includes a rejection-style blade that ensures correct fuse placement and eliminates the chance of incorrect fuse usage.

Product Information

Standard Information

• Voltage Rating: 250 VAC/125 VDC
• Current Rating: 90 Amp

Technical Specifications

• Class: RK5
• Interrupting Rating: 200kA at 250V AC, 20kA at 125V DC
• Type: Time-Delay
• Body Material: Fiberglass
• Length: 5-7/8 inches
• Diameter: 1-1/16 inches
