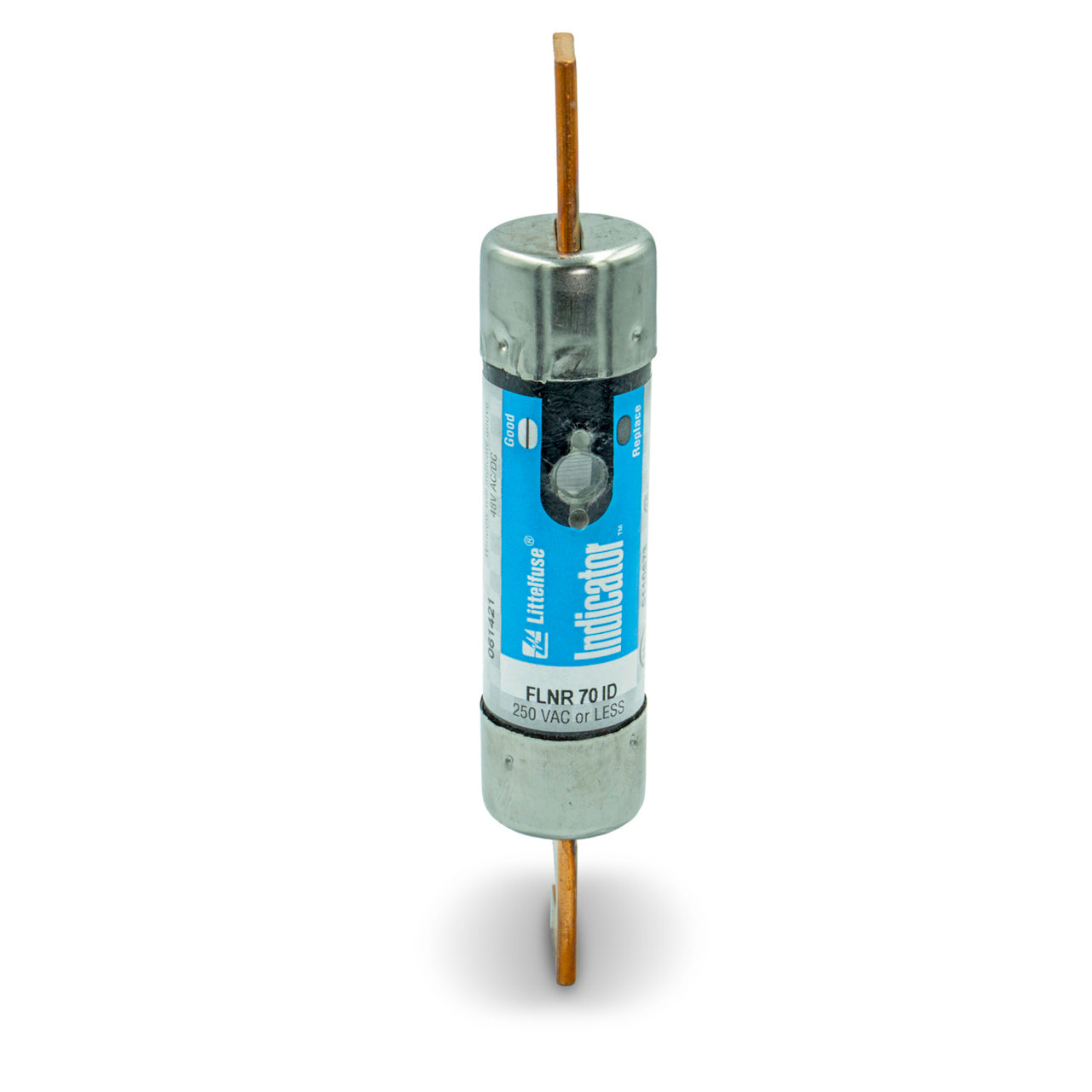

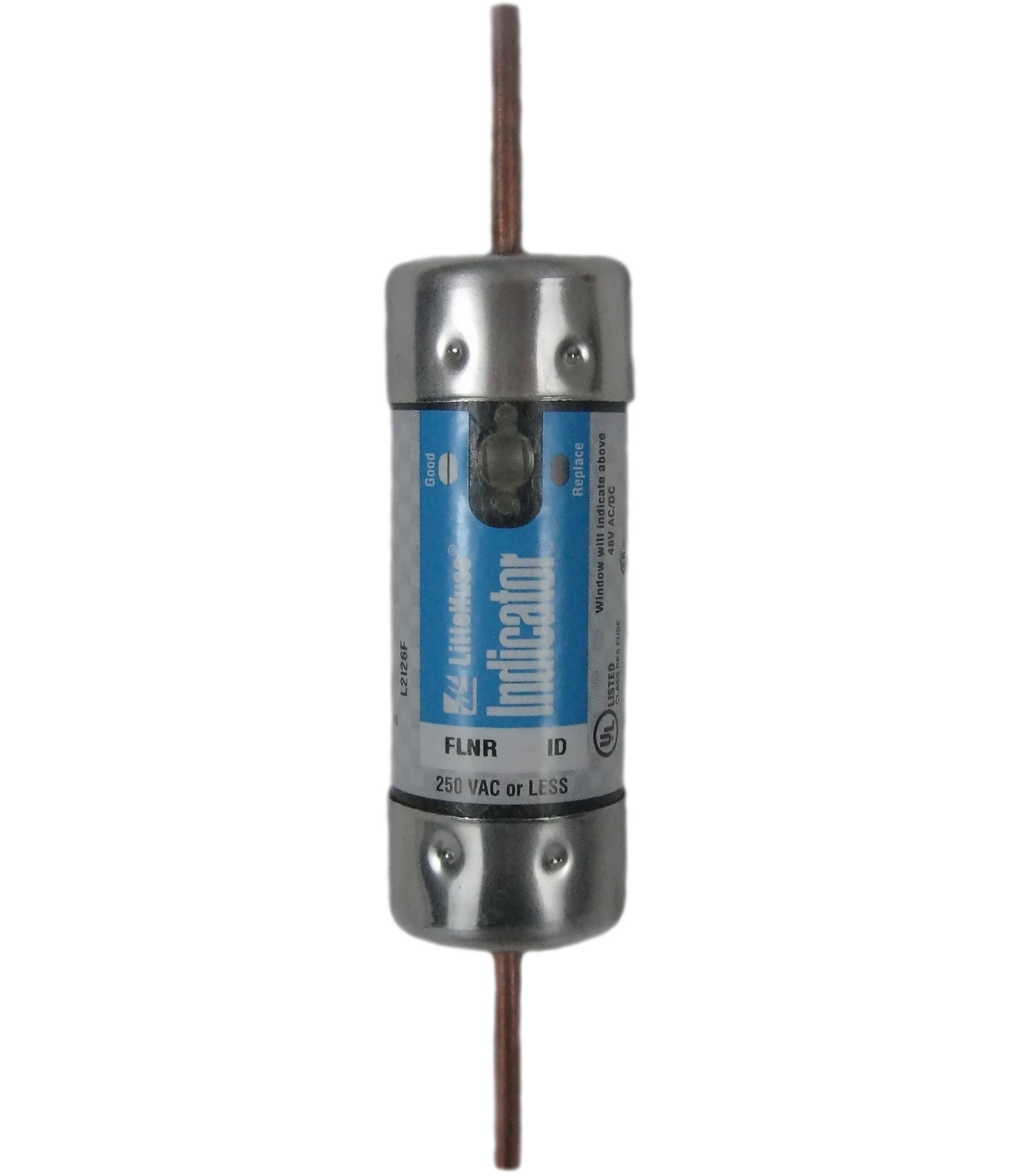

Littelfuse FLNR070ID fuse 70A class rk5 dual element time delay with indication

Product Description

The Littelfuse FLNR070ID is a 70A, Class RK5 dual element time delay fuse with indication. This FLNR series fuse provides reliable interruption of overcurrents up to 200 kA. It offers faster short circuit protection than non-current limiting mechanical devices and ensures accurate response to overloads and short circuits.

• Reliable interruption of all over currents up to 200 kA
• Faster acting short circuit protection
• Visual blown fuse indication

Product Highlights

This Littelfuse FLNR series fuse is ideal for motor circuits and provides visual blown fuse indication for reduced downtime and increased safety.

Product Information

Standard Information

• Brand: LITTELFUSE
• Manufacturer Part Number: FLNR070ID
• Country of Origin: MX

Technical Specifications

• Type: FUSES
• Class: RK5
• Series: FLNR
• Element: Dual
• Material: Composite
• Body Size: 1-1/16 in Dia x 5-7/8 in L
• Body Type: Cylindrical
• Mounting Type: Holder
• Response Time: Time-Delay
• Terminal Type: Blade
• Voltage Rating: 250 VAC/125 VDC
• Amperage Rating: 70 A
• Frequency Rating: 50/60 Hz
• Interrupt Rating: 200 kAIC
• Rejection/Non-Rejection: Rejection
• Indicating/Non-Indicating: Indicating
• Characteristics: Dual Element, Time Delay
• Diameter: 1.0625 Inch
• Length: 5.875 Inch
• Approval: UL 248-12, CSA, QPL-WF-1814, CE
• Includes Indicator: True
• Application: Service Entrance Switches, Switchboard Main and Feeder Switches, Motor Control Center Mains and Motor Branch Circuits, Individual Fused Combination Motor Controllers, Distribution Panelboards, Industrial Control Panels, Protection of Fully-Rated Panelboards and Loadcenters, All General Purpose Circuits
• Opening: Slo-Blo/Time Lag (T)/Time Delay
• Maximum AC Voltage (V): 250
• Maximum DC Voltage (V): 125
• Fuse Class: Class RK5
• Indicating: Yes
• Interrupt Amperage: 200000
• Mounting Method: Fuse Block / Clip / Holder
• Standard: cUL, CSA, UL
• Connection: Bladed
• Country of Origin: MX
• Body Style: Cylindrical
