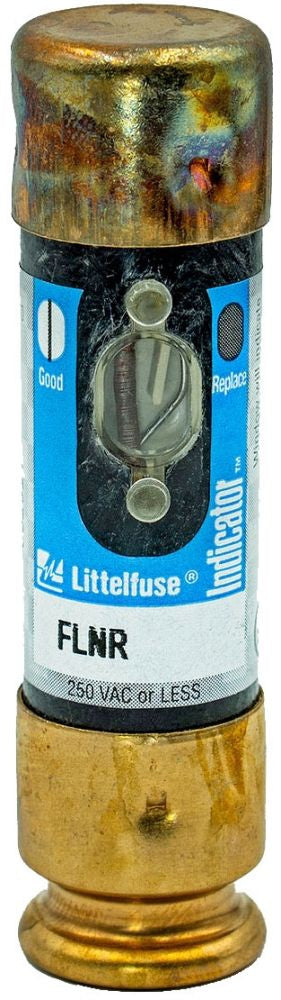

Littelfuse FLNR050ID 50 Amp 250 VAC 125 VDC Class RK5 Dual Element Time Delay Fuse with Indicator

Product Description

The Littelfuse FLNR050ID is a 50 Amp, 250 Volt AC and 125 Volt DC, Class RK5 dual element time delay fuse equipped with an indicator. This fuse is designed to provide visual blown fuse indication, reducing downtime and increasing safety. Its solid-state design ensures reliability and superior performance, making it suitable for various applications.

• Visual blown fuse indication for quick identification
• Time delay characteristics reduce nuisance tripping
• High interrupting capacity protects circuits from overloads

Product Highlights

The FLNR050ID fuse is ideal for service entrance switches, motor control centers, and other general-purpose circuits. It minimizes the risk of equipment damage and ensures operational efficiency.

Product Information

Standard Information

• UPC: 079458023831
• Manufacturer: Littelfuse

Technical Specifications

• Amperage Rating: 50 A
• Voltage Rating: 250 VAC / 125 VDC
• Interrupting Rating: 200000 Ampere (Symmetrical) / 20000 Ampere (DC)
• Application: General Purpose
• Body Size: 13/16 inches diameter x 3 inches length
• Class: RK5
• Body Type: Cylindrical
• Special Features: Time-Delay
• Frequency Rating: 50/60 Hz
• Standard: UL 248-12, CSA
