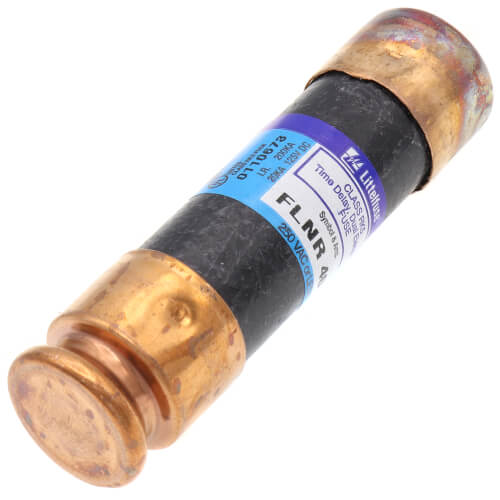

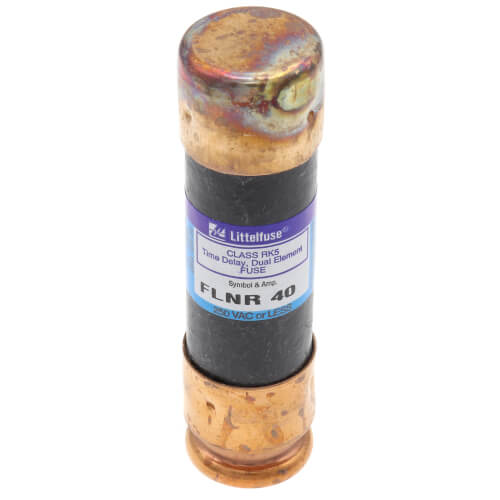

Littelfuse FLNR040 40 Amp 250V 125VDC Class RK5 Dual Element Time Delay Fuse 10-pack

Product Description

Designed for robust circuit protection, the Littelfuse FLNR040 provides top-level safeguarding with its dual element time-delay feature. Suitable for a wide range of applications, particularly in setups involving motors, this fuse operates efficiently both in AC and DC circuits.

• Effortlessly handles up to 200,000 amperes of interrupting rating.

• Optimized for general-purpose applications across varied industries.

• Engineered with a reliable time-delay build to manage temporary peaks without tripping.

Product Highlights

FLNR040 offers advanced protection with its engineered design ensuring prolonged durability and consistent performance. This dual-element fuse is ideal for heavy-duty applications where precision is crucial.

Product Information

Standard Information

• Class: RK5

• Amperage: 40 Amp

• Interrupt Rating: 200kA at 250VAC, 20kA at 125VDC

• Body Material: Fiberglass

Technical Specifications

• Voltage: 250VAC / 125VDC

• Dimensions: 3 inches Length x 13/16 inches Diameter

• Series: FLNR

• Non-Indicating: Optimal for systems where visual indication is not vital.

• Quantity: 10
