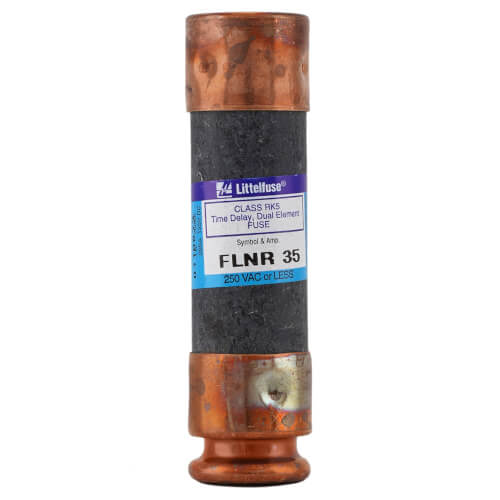

Littelfuse FLNR035 35 Amp 250 VAC 125 VDC Class RK5 Dual Element Time Delay Fuse

Product Description

The Littelfuse FLNR035 is a 250V time delay fuse designed for reliable protection in electrical circuits. This fuse is part of the FLNR series known for its dual-element, time-delay feature. The FLNR035 is commonly used in various industrial and commercial applications including motor circuits, transformers, and power distribution systems.

• Handles electrical loads with a 35 Amp current rating
• Ensures smooth operation during transient voltage surges with its time delay action
• Trusted Littelfuse brand for high quality and reliability

Product Highlights

This fuse protects against electrical overloads and short circuits. It contributes to increased safety and minimizes the risk of electrical failures.

Product Information

Standard Information

• Brand: Littelfuse
• Series: FLNR
• Type: Class RK5
• Voltage: 250VAC / 125VDC
• Amperage: 35A
• Element: Dual
• Body Style: Cylindrical
• Body Material: Fiberglass

Technical Specifications

• Interrupt Rating: 200kA at 250VAC, 20kA at 125VDC
• Length: 3 inches
• Diameter: 13/16 inches
• Standards: CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814
• Country of Origin: Mexico
• UPC: 079458150742
• Catalog Number: FLNR035
• Application: General Purpose
