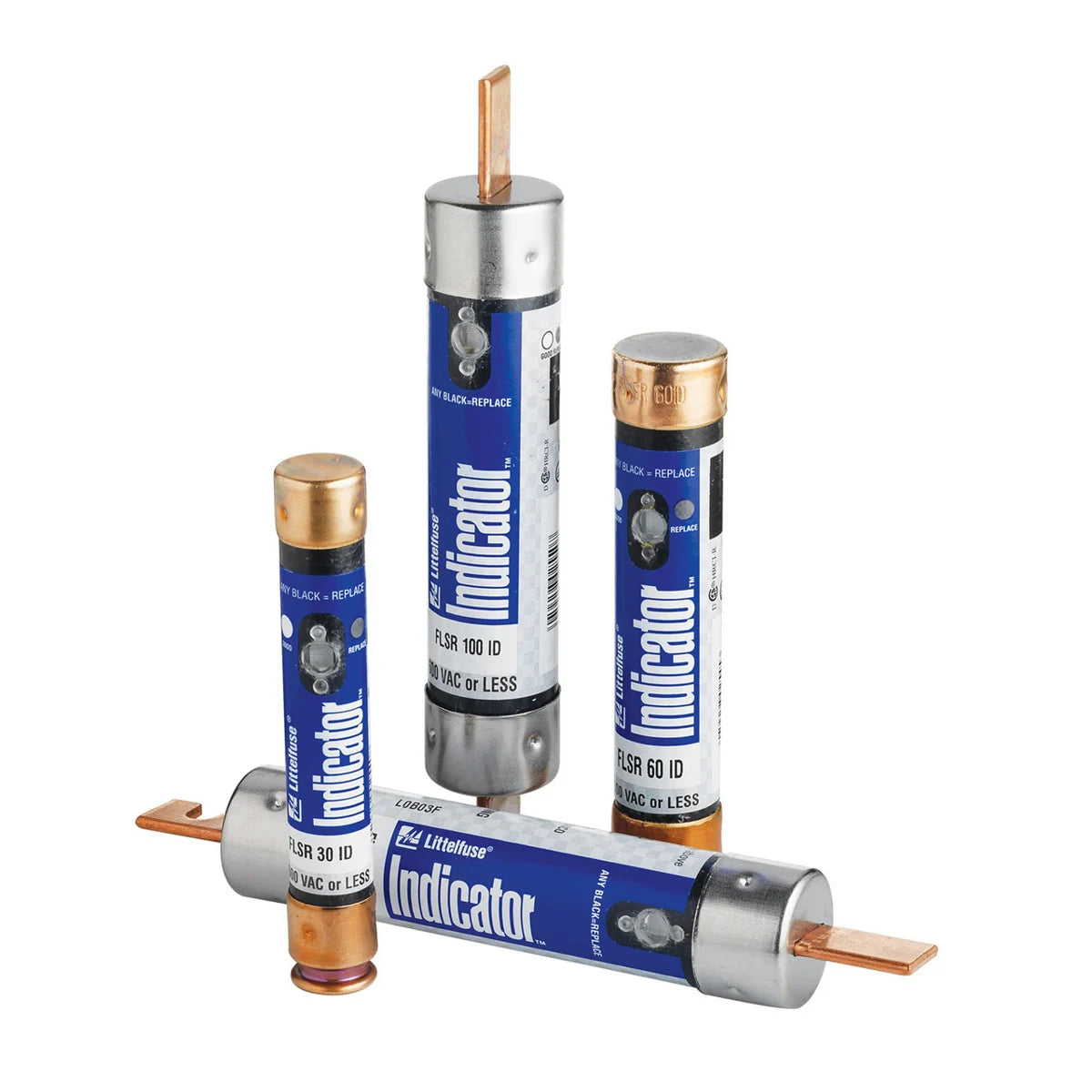

Littelfuse FLNR008 Available in Both Indicating and Non-Indicating Versions Power Class RK5 Fuse

Product Description

The Littelfuse FLNR008 is a dual-element fuse designed for use in general-purpose applications. This fuse provides overload and short circuit protection, making it suitable for various electrical circuits. It is available in both indicating and non-indicating versions, allowing for flexibility in installation.

• Time-delay functionality for enhanced performance
• Suitable for all types of circuits, especially those with motors
• Compliance with UL and CSA standards

Product Highlights

The Littelfuse FLNR008 reliably protects electrical systems from overcurrents with its advanced features.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Brand: Littelfuse

Technical Specifications

• Catalog Number: FLNR008
• Application: General Purpose
• Type: Current Limiting
• Class: RK5
• Voltage Rating: 250 VAC/125 VDC
• Amperage Rating: 8 A
• Interrupt Rating: 200/20 kA
• Response Time: 10 s
• Body Size: 9/16 in diameter x 2 in length
• Material: Fiber
• Mounting Type: Holder
• Country of Origin: Mexico
• Standard: Standard 248-12 UL Listed/CSA
• Special Features: Time-Delay
