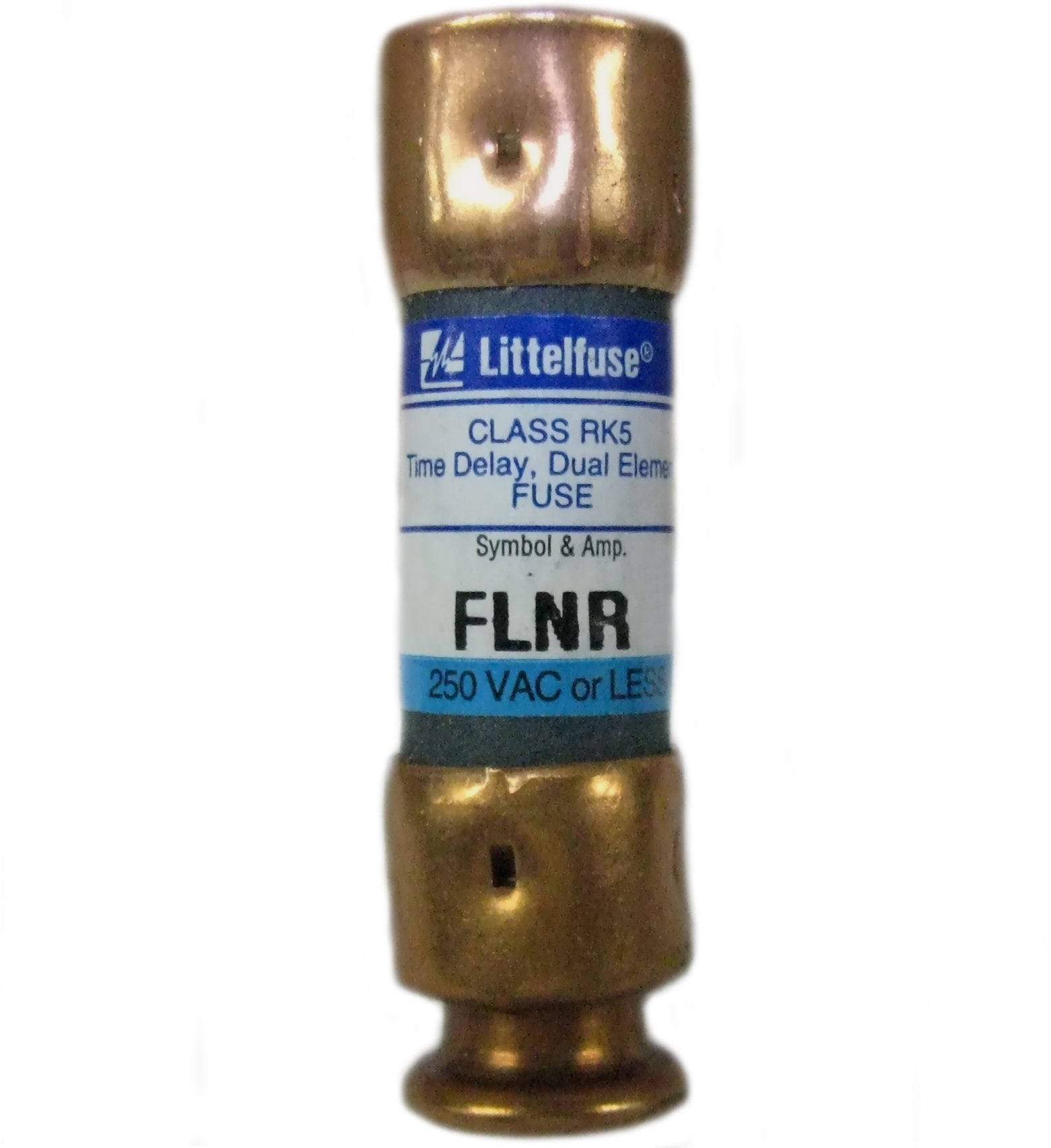

Littelfuse FLNR004 Fuse 4A 250VAC/125VDC 200kA AC 20kA DC Class RK5 Time Delay

Product Description

The Littelfuse FLNR004 Fuse offers reliable protection for electrical circuits in various applications. This fuse operates at four amps with a voltage rating of two hundred fifty volts AC and one hundred twenty-five volts DC. It features a time-delay function that helps prevent nuisance tripping caused by momentary surges. This product is essential for ensuring safety and reliability in commercial and industrial settings.

• Time-delay feature for handling temporary overloads
• Rated for 250VAC/125VDC
• Interrupting rating of 200kA AC and 20kA DC

Product Highlights

This dual element fuse is designed for use in service entrances, switchboards, and motor control circuits. It is engineered to provide accurate protection against overloads and short circuits.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Type: Time Delay Fuse

Technical Specifications

• Amperage Rating: 4 A
• Voltage Rating: 250 VAC / 125 VDC
• Body Size: 9/16 inches diameter x 2 inches length
• Class: RK5
• Interrupting Rating: 200,000 A AC / 20,000 A DC
• Material: Fiber
• Mounting Type: Holder
• Terminal Type: Ferrule
• Response Time: 10 seconds
