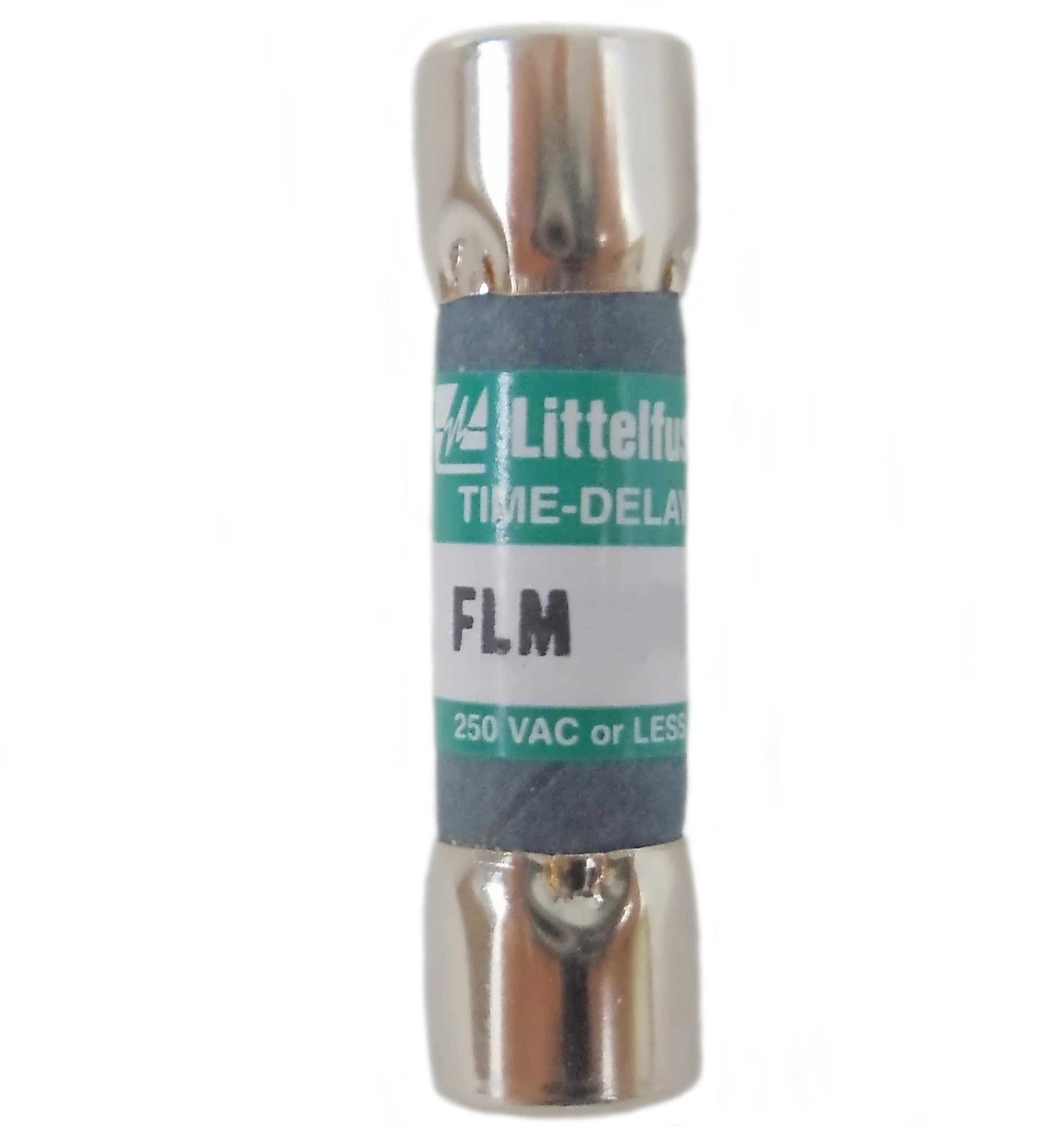

Littelfuse FLM6.25 Time Delay Midget Fuse 6.25A 250VAC 125VDC

Product Description

The Littelfuse FLM6.25 midget fuse is a time-delay fuse designed for supplementary protection in various electrical circuits. This 6.25 amp fuse operates at 250 volts AC and 125 volts DC, making it suitable for a wide range of applications including control circuits, street lighting, computers, DC circuits, solenoids, small motors, and transformers.

• 6.25 amp rating
• Time delay response
• 250 volts AC / 125 volts DC

Product Highlights

The FLM series by Littelfuse offers non-indicating midget fuses with a cylindrical body, measuring 13/32 inches in diameter and 1-1/2 inches in length.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Brand: Littelfuse

Technical Specifications

• Amperage Rating: 6.25 A
• Voltage Rating: 250 VAC/125 VDC
• Body Size: 13/32 in Dia x 1-1/2 in L
• Body Type: Cylindrical
• Mounting Type: Clip
• Response Time: 12 s
• Terminal Type: Ferrule
• Interrupt Rating: 10 kA
• Standards/Approvals: RoHS Compliant, UL, CSA
