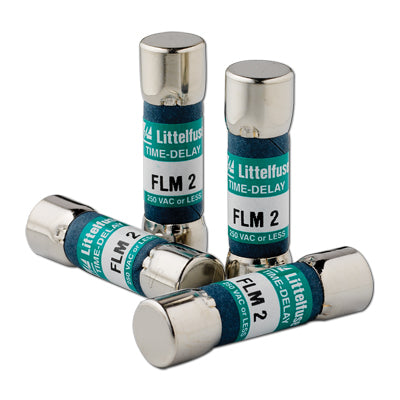

Littelfuse FLM04.5 Time Delay Midget Fuse for Supp. Protection

Product Description

Littelfuse POWR-GARD FLM04.5 is a time delay midget fuse designed for supplemental protection. Rated at 4.5 amperes, it operates at 250 VAC and 125 VDC, with a ten kiloamp interrupt capability. This fuse features a cylindrical body and a response time of twelve seconds. Suitable for various applications, it provides reliable performance in circuits with high in-rush current.

• 4.5 A amperage rating
• 12 s response time
• Ferrule terminal for easy mounting

Product Highlights

The Littelfuse FLM04.5 is ideal for supplementary protection in diverse electrical applications.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Type: Time Delay

Technical Specifications

• Amperage Rating: 4.5 A
• Voltage Rating: 250 VAC / 125 VDC
• Response Time: 12 s
• Body Size: 13/32 in Dia x 1-1/2 in L
• Body Type: Cylindrical
• Series: FLM
• Interrupt Rating: 10 kA
• Mounting Type: Clip
• Terminal Type: Ferrule
• Indicating: Non-Indicating
• Standards/Approvals: RoHS Compliant, UL File No. E10480
