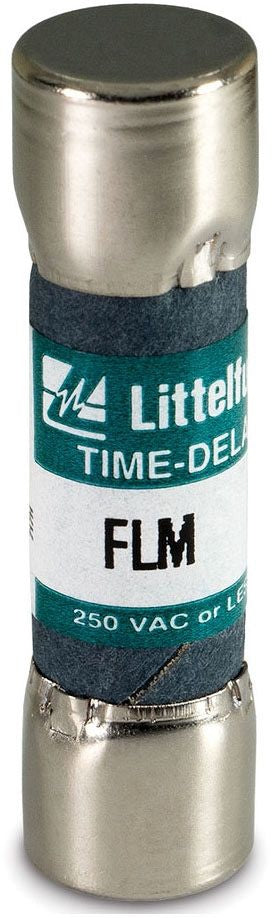

Littelfuse FLM030 Time Delay Midget Fuse 30 Amp 250 VAC 125 VDC FLM030

Product Description

The Littelfuse FLM030 is a 30 Amp time delay midget fuse designed for 250 Volt alternating current (VAC) and 125 Volt direct current (VDC) systems. This fuse is ideal for protecting control circuit transformers and solenoids, making it suitable for applications that experience high inrush currents.

• Time delay feature to manage high inrush currents
• Protects small motors and other sensitive components
• Rated for 30 Amps with 250 VAC and 125 VDC

Product Highlights

This midget fuse is designed for exceptional reliability in circuit protection, ensuring your devices receive optimal safety.

Product Information

Standard Information

• Brand: Littelfuse
• Catalog Number: FLM030

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 250 VAC / 125 VDC
• Interrupt Rating: 10 kA
• Response Time: 12 seconds
• Body Size: 13/32 inches diameter x 1-1/2 inches long
• Terminal Type: Ferrule
• Body Type: Cylindrical
• Type: Time Delay
• Application: Suitable for small motors and circuits with high inrush
