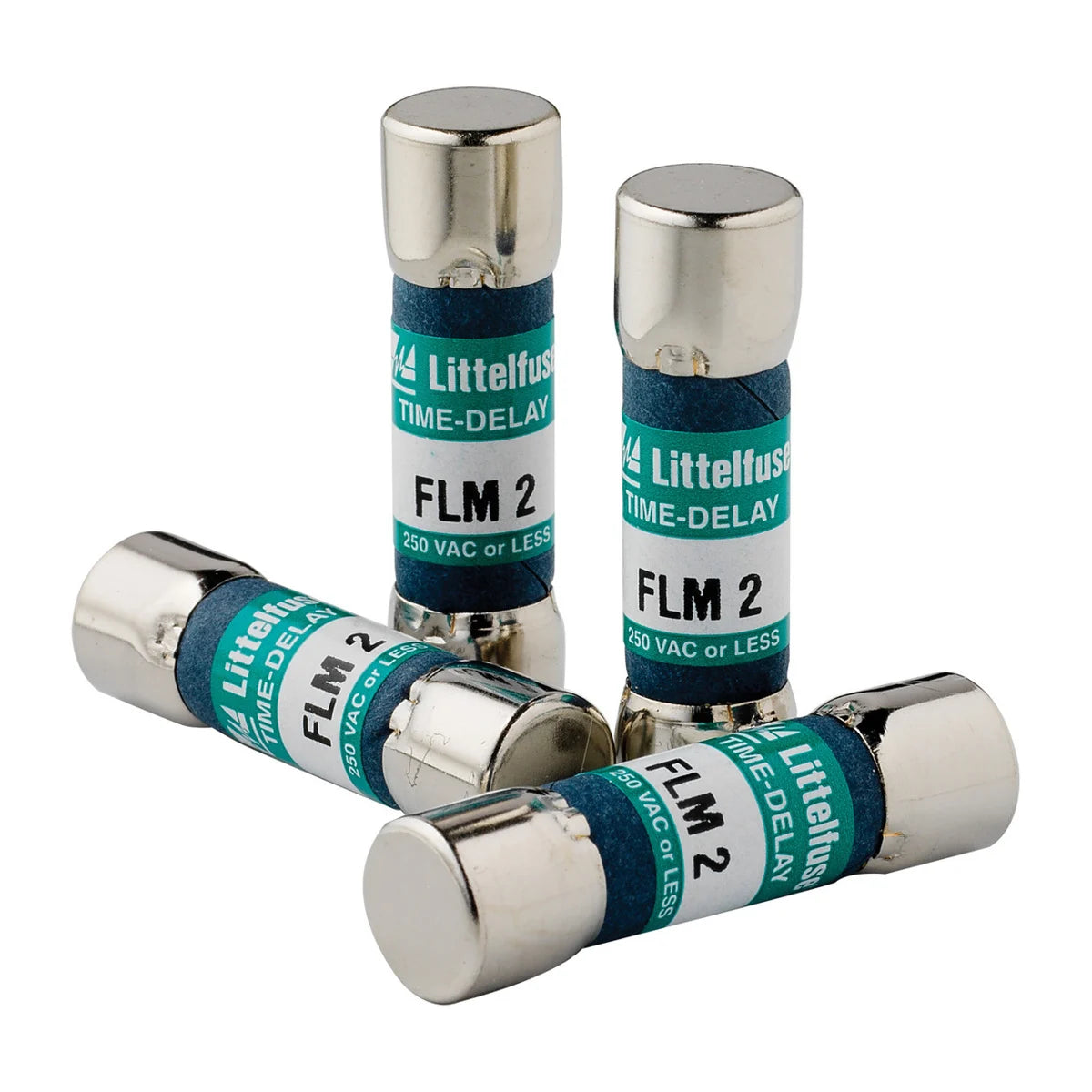

Littelfuse FLM03.2 Use FLM 250 Volt Time-Delay Fuses To Protect Control Circuit Transformers, Solenoids, And Other Circuits With High Inrush Currents Excellent For Supplemental Protection Of Small Motors

Product Description

Littelfuse FLM03.2 is a time-delay fuse designed for circuits requiring protection from high inrush currents. This fuse is ideal for protecting control circuit transformers, solenoids, and small motors. The FLM03.2 operates at a voltage rating of two hundred fifty volts and includes a ten thousand amp interrupt rating.

• Time-delay functionality to manage inrush currents
• Non-indicating design for simpler application
• RoHS compliant, ensuring safety and environmental standards

Product Highlights

This fuse provides reliable protection against overloads and is suited for small motor and transformer applications.

Product Information

Standard Information

• Manufacturer: Littelfuse
• UPC: 079458140491

Technical Specifications

• Catalog Number: FLM03.2
• Amperage Rating: 3.2 A
• Voltage Rating: 250 VAC/125 VDC
• Interrupt Rating: 10 kA
• Response Time: 12 seconds
• Body Size: 13/32 inches diameter x 1.5 inches length
• Body Type: Cylindrical
• Mounting Type: Clip
• Application: Small motors/high inrush
