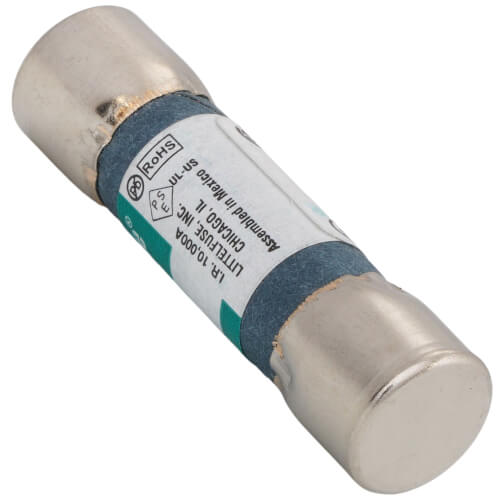

Littelfuse FLM010 Time-Delay Midget Fuse 250V 10A

Product Description

The Littelfuse FLM010 is a midget time-delay fuse designed for protecting circuits with high inrush currents, such as those found in control circuit transformers and solenoids. This 10 Amp, 250VAC fuse delays opening when short-term overload is detected, protecting against transient spikes and surges.

• Robust time-delay feature suited for high inrush circuits.
• 10 Amp, 250 Volt specifications ensure compatibility with a wide range of devices.
• Compact midget size allows for installation in space-constrained applications.

Product Highlights

The FLM010 model is crafted for reliability and precise performance with a cylindrical body design that enhances durability. It is ideal for supplemental protection applications and complies with RoHS and UL standards for safety and environmental considerations.

Product Information

Standard Information

• Brand: Littelfuse
• UPC: 079458140651
• Amperage: 10 Amps
• Voltage: 250 Volts

Technical Specifications

• Interrupt Rating: 10 kA at 250VAC
• Mounting Type: Clip
• Body Size: 13/32 in Dia x 1-1/2 in L
• Material: Polyester reinforced
• Standards: UL Listed, CSA Certified
