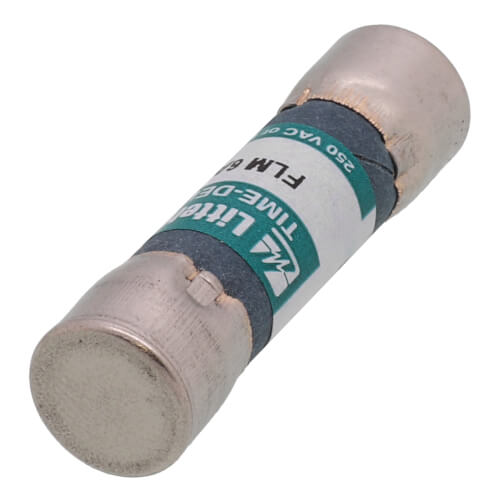

Littelfuse FLM006 Time-Delay Midget Fuse 6A 250V 125VDC
Littelfuse FLM006 Time-Delay Midget Fuse 6A 250V 125VDC

Littelfuse FLM006 Time-Delay Midget Fuse 6A 250V 125VDC

Brand: LITTELFUSE
SKU: FLM006
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12pm
$21.99
$21.99
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Littelfuse FLM006 is a reliable time-delay midget fuse, rated at 6A for 250V AC and 125V DC, designed to protect control circuits, transformers, and motors from inrush currents.

  • Provides excellent supplemental motor protection
  • Withstands inrush currents with time-delay feature
  • Suitable for a wide range of applications, including solenoids and small motors

Product Highlights

This cylindrical fuse offers a time-delay of up to 12 seconds, ensuring effective protection without nuisance trips in high transient systems.

Product Information

Standard Information

  • Type: Time-Delay
  • Body Type: Cylindrical

Technical Specifications

  • Amperage Rating: 6A
  • Voltage Rating: 250VAC/125VDC
  • Interrupt Rating: 10kA at 250VAC
  • Length: 1-1/2 inches
  • Diameter: 13/32 inches
  • Standards/Approvals: UL Listed, CSA Certified, RoHS Compliant
