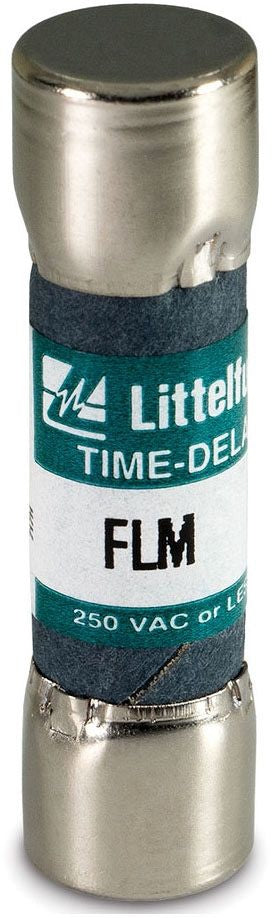

Littelfuse FLM004 4 Amp 250 VAC 125 VDC Time Delay Midget Fuse

Product Description

Littelfuse FLM004 is a time-delay midget fuse designed for protection in control circuits. This fuse operates at four amps with a voltage rating of 250 VAC and 125 VDC. It is suitable for use with control circuit transformers, solenoids, and small motors that experience high inrush currents. This fuse provides supplemental protection to ensure the safe operation of electrical systems.

• Operates at 250 volts with a 4 amp rating.
• Time-delay functionality to handle inrush currents.
• Approved for various applications, including motors and transformers.

Product Highlights

Ideal for applications requiring reliable overcurrent protection

Product Information

Standard Information

• Brand: Littelfuse
• MPN: FLM004

Technical Specifications

• Amperage: 4 Amp
• Voltage: 125 Volt / 250 Volt
• Type: Time Delay
• Diameter: 0.41 inches
• Interrupt Rating: 10 kAIC
• Terminal Type: Ferrule
• Application: Small motors, control circuits, transformers
• Warnings: Can expose to chemicals known to cause cancer
