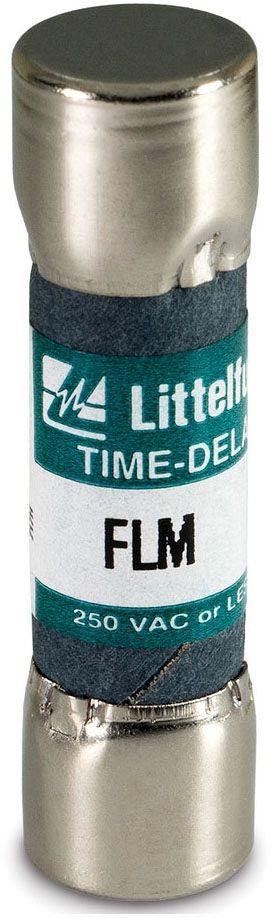

Littelfuse FLM003 3 Amp 250 VAC 125 VDC Time Delay Midget Fuse

Product Description

The Littelfuse FLM003 is a time-delay midget fuse designed for use in circuits with high inrush currents. Rated for three amps at two hundred fifty volts AC and one hundred twenty-five volts DC, this fuse provides necessary protection for control circuits, transformers, and small motors.

• Time-delay fuse for high inrush applications
• Use with control circuit transformers and solenoids
• Excellent for supplemental protection of small motors

Product Highlights

This fuse is ideal for applications requiring supplementary protection in circuits subject to high inrush currents. Its time delay feature allows for a brief tolerance against those initial surge currents.

Product Information

Standard Information

• Manufacturer: Littelfuse
• MPN: FLM003

Technical Specifications

• Voltage Rating: 250 VAC / 125 VDC
• Amperage Rating: 3 A
• Item Type: Time Delay
• Body Type: Cylindrical
• Response Time: 5 s
• Interrupt Rating: 10 kA
• Terminal Type: Ferrule
• Applications: Small motors, control circuits, transformers
