Description

Product Description

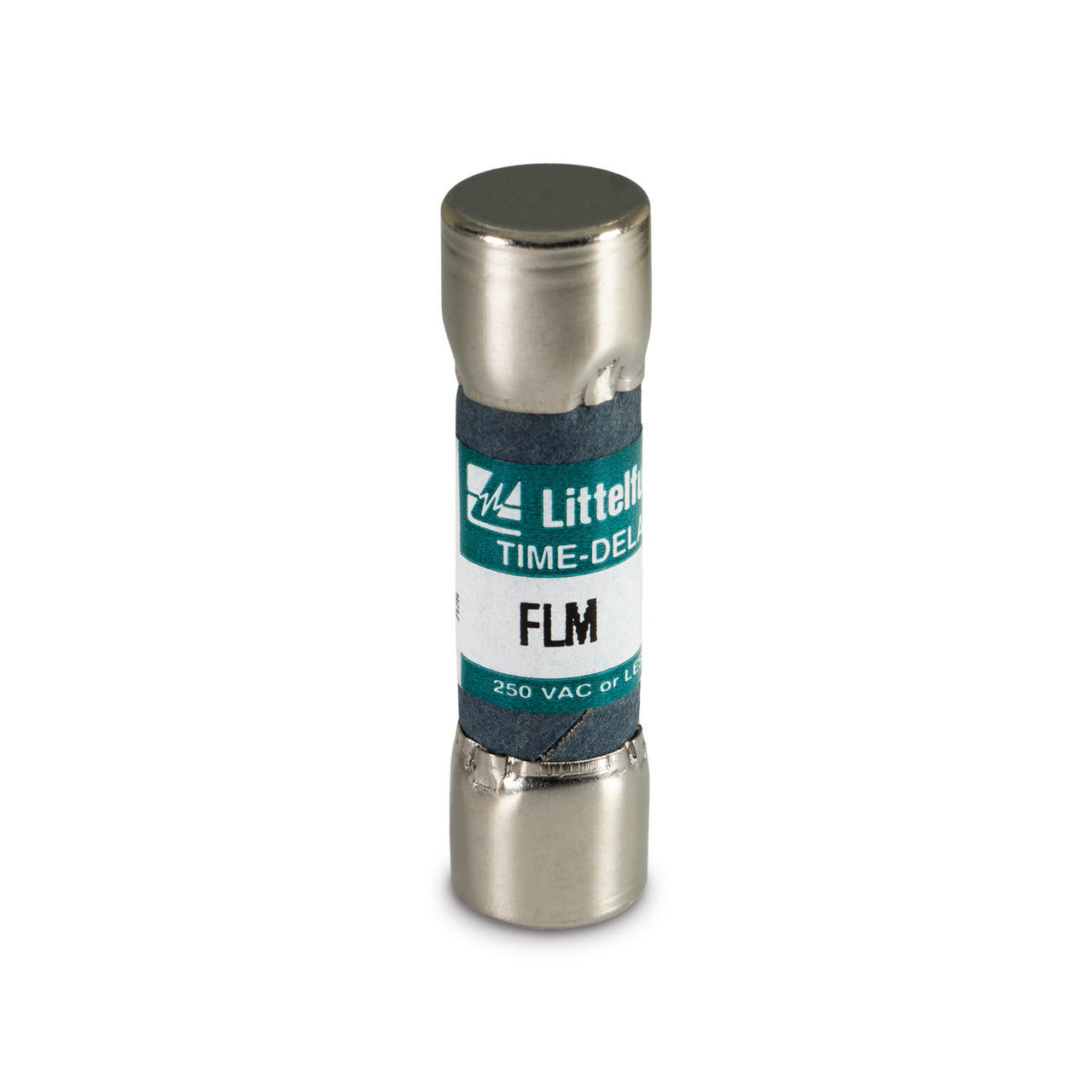

Littelfuse FLM.100 is a 250 V time-delay (slo-blo) midget fuse rated 0.1 A for protecting control circuit transformers, solenoids, small motors and other circuits with high inrush currents. It provides a 10 kA interrupting rating and is rated 250 VAC / 125 VDC. The cylindrical 5AG (10 x 38 mm) fuse features ferrule terminals for clip mounting, a paper body with nickel-plated bronze caps, and RoHS, UL and CSA approvals.

  • 0.1 A time-delay midget (5AG / 10 x 38 mm) fuse rated 250 VAC / 125 VDC with 10,000 A interrupting rating
  • Cylindrical paper body with nickel-plated bronze caps, ferrule terminals and clip or fuse block mounting; non-indicating
  • Time-delay (slo-blo) opening: maximum 1 hour at 135% of rated current; minimum 5 seconds at 200% of rated current; RoHS, UL and CSA compliant

Product Highlights

0.1 A time-delay midget fuse, 250 VAC/125 VDC, 10 kA interrupting rating, ferrule terminals

Product Information

Standard Information

  • Brand: LITTELFUSE
  • Manufacturer Part Number: FLM.100
  • Country of Origin: Mexico
Technical Specifications
Manufacturer
Littelfuse
MPN
FLM.100
Brand
Littelfuse
Series
FLM
Type
Time-Delay (Slo-Blo), Midget (5AG)
Current Rating
0.1 A
Voltage Rating
250 VAC / 125 VDC
Interrupting Rating
10,000 A @ 250 VAC (10 kA)
Size
5AG (10 x 38 mm)
Dimensions
0.40625 in diameter x 1.5 in length (approximately 0.41 in x 1.5 in)
Body Material
Paper
Cap Material
Nickel plated bronze
Terminal Type
Ferrule
Mounting Type
Clip / Fuse block / Holder
Opening Time
Maximum 1 hour at 135% of rated current; minimum 5 seconds at 200% of rated current
Response Time
5 seconds minimum at 200% for fuses <= 3 A (typical specification)
Indicating
Non-Indicating
Approvals
UL Listed (UL 248-14), CSA, CE, RoHS
Country of Origin
Mexico
Body Style
Cylindrical
Weight
0.010 lbs (4.54 g)
Application
Supplementary protection of control circuits, transformers, solenoids, small motors and other circuits with high inrush currents
