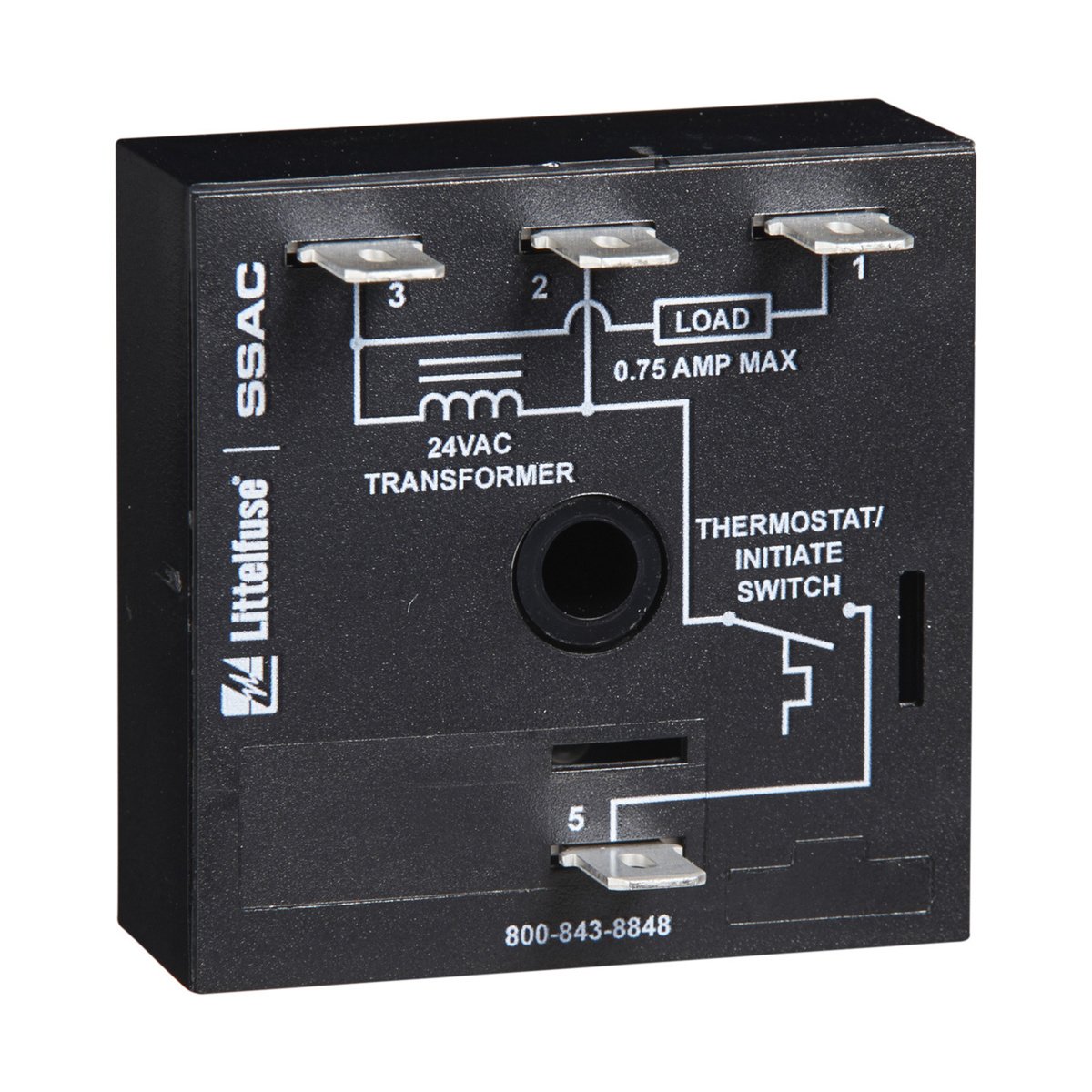

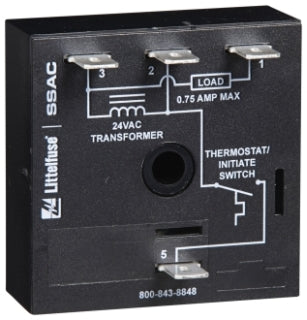

Littelfuse CT45S45 ON/OFF Timing Module 24VAC

Product Description

The Littelfuse CT45S45 ON/OFF Timing Module provides precise timing control for various industrial applications. Designed to operate at 24 volts AC, this module combines delay-on-make and delay-on-break features into one unit. It is suitable for controlling fan delays in heating and cooling systems. The CT45S45 includes bypass circuitry that works with cooling anticipators and can operate in circuits with several modules for synchronized control of multiple loads.

• Delay-on-make and delay-on-break functionality
• Temperature rating from -40 to 70 degrees Fahrenheit
• Surface mounting design with quick-connect terminals

Product Highlights

Utilize this timing module for managing the operation of HVAC systems or other industrial controls efficiently.

Product Information

Standard Information

• Catalog Number: CT45S45
• Manufacturer: Littelfuse

Technical Specifications

• Voltage Rating: 24VAC
• Time Delay Range: 45 seconds
• Mounting Type: Surface
• Operating Temperature: -40 to 70 degrees Fahrenheit
• Dimensions: 2 inches high x 2 inches wide x 1.21 inches deep
