Littelfuse CCR200TXP Midget Fuse Power 600V Pack of 10

Product Description

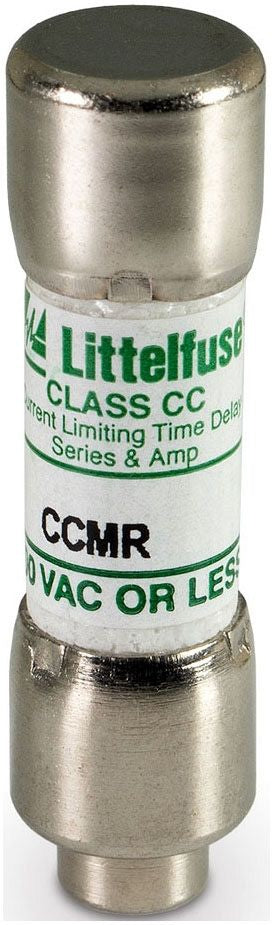

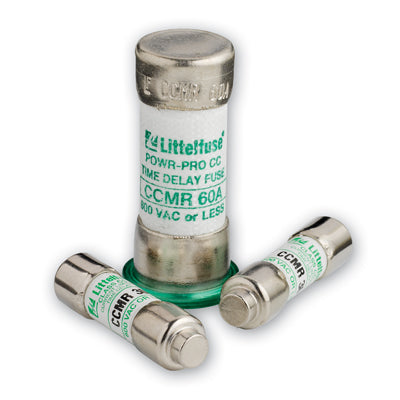

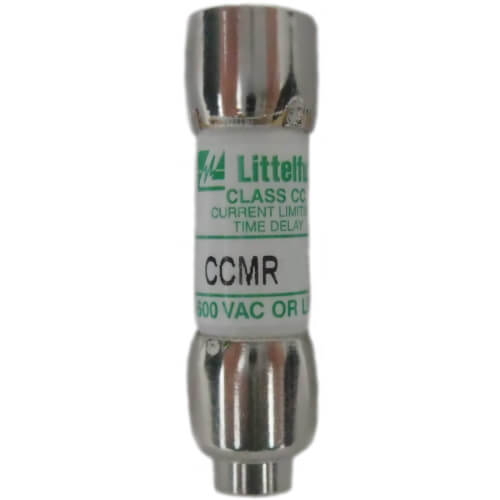

Littelfuse CCMR.200TXP is a time delay midget fuse rated for 600V applications. It is designed for motor branch circuit protection, especially for motors up to forty horsepower. This fuse features a dual element, which allows it to effectively limit current and reduce damage during short-circuit events.

• Current limiting technology reduces damage from overcurrents.
• Compact size saves space compared to traditional fuses.
• Provides reliable protection against short-circuit damage.

Product Highlights

The Littelfuse CCMR200TXP is ideal for protecting sensitive motor components and is highly effective in applications requiring reliable interruption of high currents.

Product Information

Standard Information

• Manufacturer: Littelfuse
• UPC: 07945896805

Technical Specifications

• Amperage Rating: 0.2 A
• Voltage Rating: 600 VAC / 250 VDC
• Interrupting Rating: 200000 A
• Type: Class CC
• Diameter: 0.41 inches
• Length: 1.5 inches
• Terminal Type: Ferrule
• Approval: UL 248-4, CSA, CE
