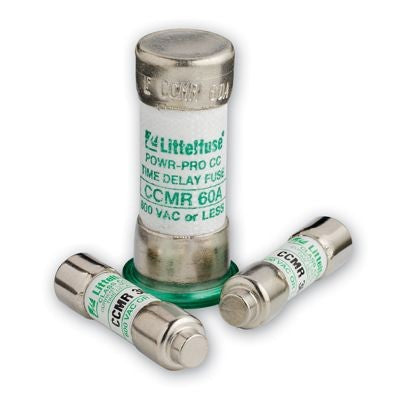

Littelfuse CCMR17.5TXP LIT Time Delay Fuse 17.5 A 600 VAC/500 VDC Class CC

Product Description

Littelfuse CCMR17.5TXP is a time delay fuse designed for motor protection. This fuse has a rating of seventeen point five amps and can handle up to six hundred volts alternating current or five hundred volts direct current. Its interrupt rating is twenty or two hundred kiloamperes, making it suitable for high-demand applications.

• Non-indicating fuse for reliable performance
• Designed for category CC applications
• Compact cartridge body for space-saving solutions

Product Highlights

This fuse is ideal for use in motor and branch circuit protection applications. It is built to withstand high starting currents of small motors while providing excellent current limitation.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: CCMR17.5TXP

Technical Specifications

• Amperage Rating: 17.5 A
• Voltage Rating: 600 VAC / 500 VDC
• Interrupt Rating: 20/200 kA
• Frequency Rating: 50/60 Hz
• Body Size: 0.41 in Dia x 1.5 in L
• Body Type: Cartridge
• Class: CC
• Element: Dual
• Mounting Type: Holder
• Terminal Type: Ferrule
• Standards/Approvals: UL 248-4 | CSA LR29862 | CE Certified | PROP65: Potential exposure to nickel
• Country of Origin: Mexico
