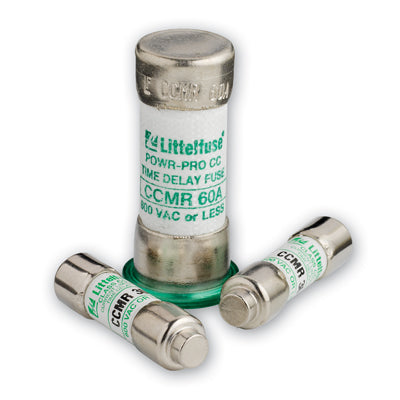

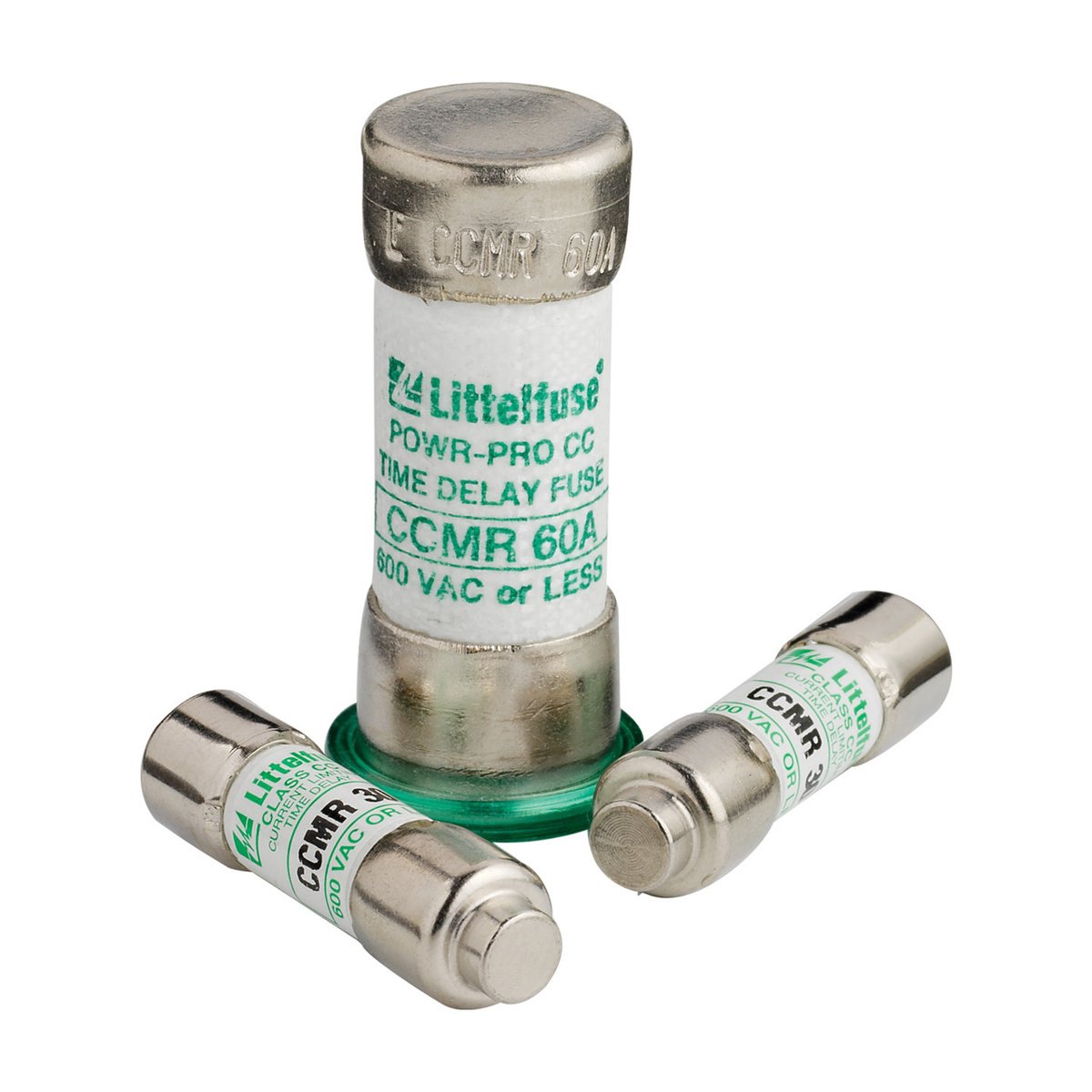

Littelfuse CCMR050.T Time Delay Fuse, 50 A, 600 VAC/250 VDC, 20/200 kA Interrupt, CD Class, Cartridge Body

Product Description

The Littelfuse CCMR050.T is a time delay fuse designed for effective protection in motor control applications. This fuse has a current rating of fifty amperes and operates at a voltage of six hundred volts AC or two hundred fifty volts DC. It is suitable for both standard and sensitive motor circuit components. This fuse is known for its current limiting capabilities, making it highly effective in managing starting currents of small motors.

• Time delay for sustained starting currents
• Handles up to 50 A at 600 VAC/250 VDC
• Designed for motor and motor branch circuit protection

Product Highlights

The CCMR050.T fuse utilizes a dual element design to provide a high level of protection in a compact size, making it ideal for applications where space is a concern.

Product Information

Standard Information

• Brand: Littelfuse
• Manufacturer Part Number: CCMR050.T

Technical Specifications

• Class: CD
• Series: CCMR
• Element: Dual
• Body Size: 0.85 in Dia x 1.88 in L
• Body Type: Cartridge
• Mounting Type: Holder
• Terminal Type: Ferrule
• Voltage Rating: 600 VAC/250 VDC
• Amperage Rating: 50 A
• Frequency Rating: 50/60 Hz
• Interrupt Rating: 20/200 kA
• Country of Origin: Mexico
• Rejection/Non-Rejection: Rejection
• Indicating/Non-Indicating: Non-Indicating
