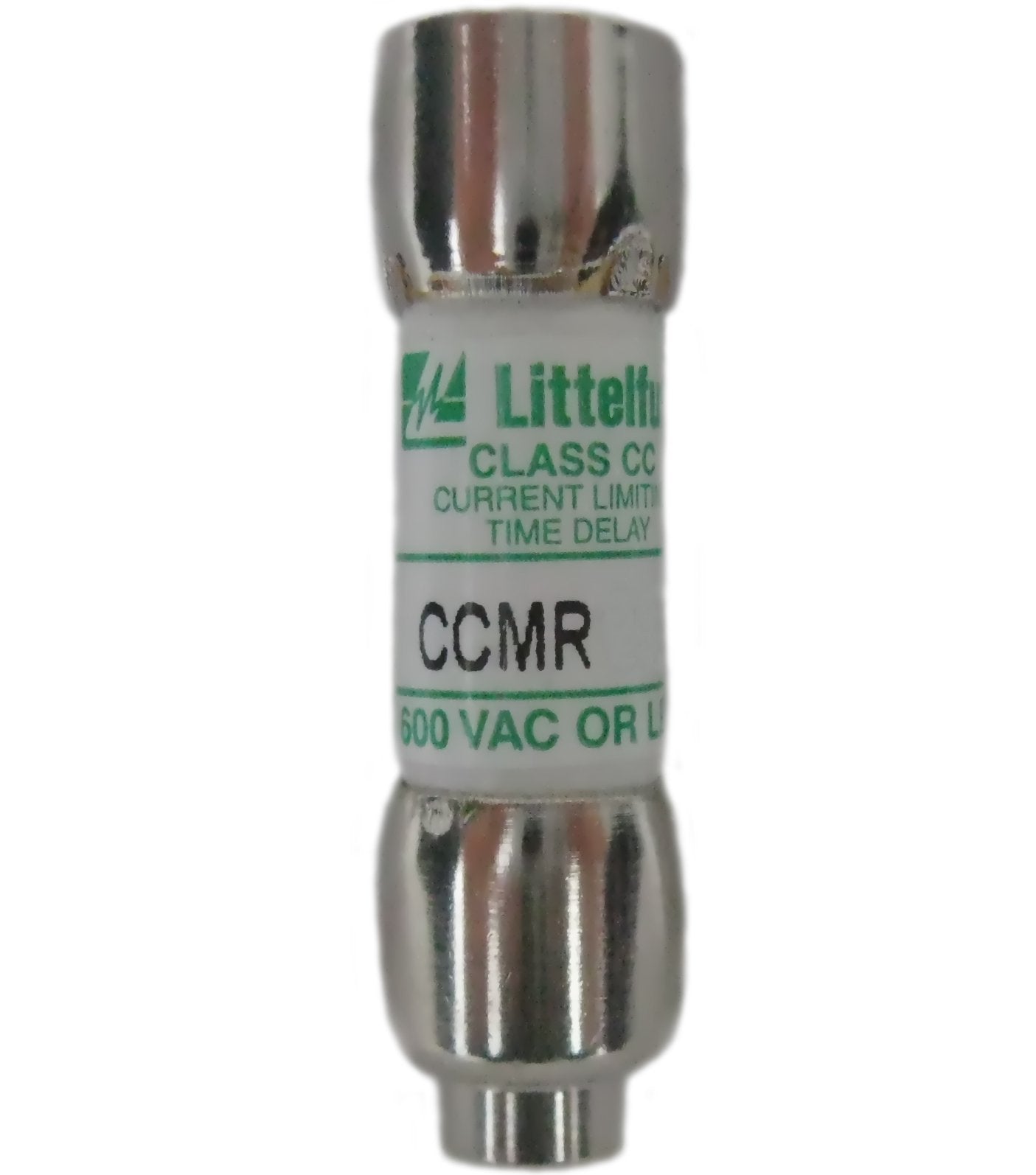

Littelfuse CCMR05.6TXP Time Delay Fuse 600 Vac/500 Vdc Size: 0.41 Inch Diameter X 1.50 Inch Length

Product Description

The Littelfuse CCMR05.6TXP fuse offers reliable protection with its time-delay feature, suitable for high inrush currents in electrical setups. Engineered by Littelfuse, this product ensures performance stability and system safeguarding against short circuits and overloads.

• 5 6/10 Amp current rating with 600 Vac/500 Vdc voltage rating.
• Dual AC and DC circuit compatibility.
• Robust 200,000 Amp AC and 20,000 Amp DC interrupting rating.

Product Highlights

With a compact design comprising a 0.41 inch diameter and a 1.50 inch length, this fuse integrates seamlessly into various electrical systems without taking up excessive space. Its cartridge form factor and rejection base type enhance safety via precise fitting and prevention of incorrect installations.

Technical Specifications

• Brand: Littelfuse
• MPN: CCMR05.6TXP
• Type: Class CC
• Current Rating: 5 6/10 Amp
• Voltage Rating: 600 Vac/500 Vdc
• Interrupting Rating: 200000 Amp AC, 20000 Amp DC
• Terminal Type: Cartridge
• Physical Dimensions: 0.41 inch diameter x 1.50 inch length
