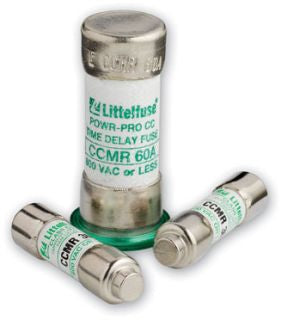

Littelfuse CCMR05.6TXP Midget Fuse 5.6 AMP 600 VAC DUAL ELEMENT TIME DELAY

Product Description

The Littelfuse CCMR05.6TXP is a dual element time delay fuse designed for high performance in electrical systems. With a rating of 5.6 amps and 600 volts AC, this fuse provides effective short-circuit protection. It is part of the Class CC series, offering superior space-saving advantages when compared to other fuse classes.

• Dual element design for reliable thermal and current protection
• Time delay functionality allows temporary overloads without blowing
• UL and CSA approved for safety and performance

Product Highlights

The Littelfuse CCMR05.6TXP is known for its current-limiting capability, which reduces damage from short-circuit currents effectively. Suitable for a wide range of applications, it provides safety in electrical systems by responding quickly to fault conditions.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Approval: UL 248-4, CSA, CE

Technical Specifications

• Type: Class CC
• Diameter: 0.41 in
• Interrupting Rating: 200,000 Amperes (Symmetrical)
• Terminal Type: Ferrule
• Characteristics: Dual Element, Time Delay
