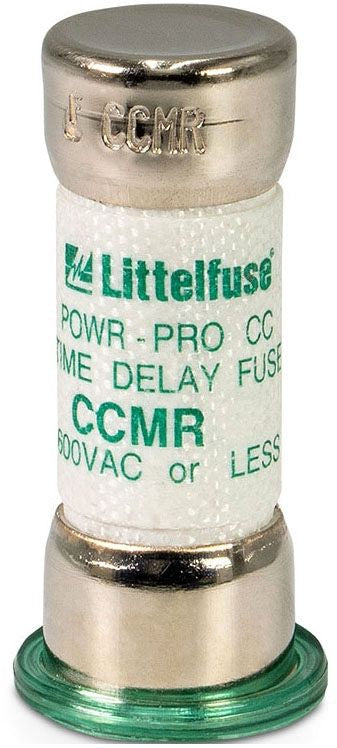

Littelfuse CCMR040.T Time Delay Fuse 40 A 600 VAC/250 VDC

Product Description

The Littelfuse CCMR040.T is a time delay fuse designed to provide reliable protection for motors and branch circuits. It is rated for forty amperes and operates at six hundred volts alternating current or two hundred fifty volts direct current.

• Amperage rating: 40 A
• High current limiting capability
• Designed for motor protection up to 40 horsepower

Product Highlights

This fuse is ideal for applications requiring sustained current protection. It is specifically designed to handle the inrush currents typical of motor startups.

Product Information

Standard Information

• Manufacturer: Littelfuse
• MPN: CCMR040.T

Technical Specifications

• Voltage Rating: 600 VAC/250 VDC
• Interrupting Rating: 200 kA (AC)
• Body Size: 0.85 inches diameter x 1.88 inches length
• Application: Motors and branch circuits
• Special Features: Time-Delay
• Standards/Approvals: UL File No E81895, CSA File No LR29862, RoHS Compliant
• Country of Origin: Mexico
