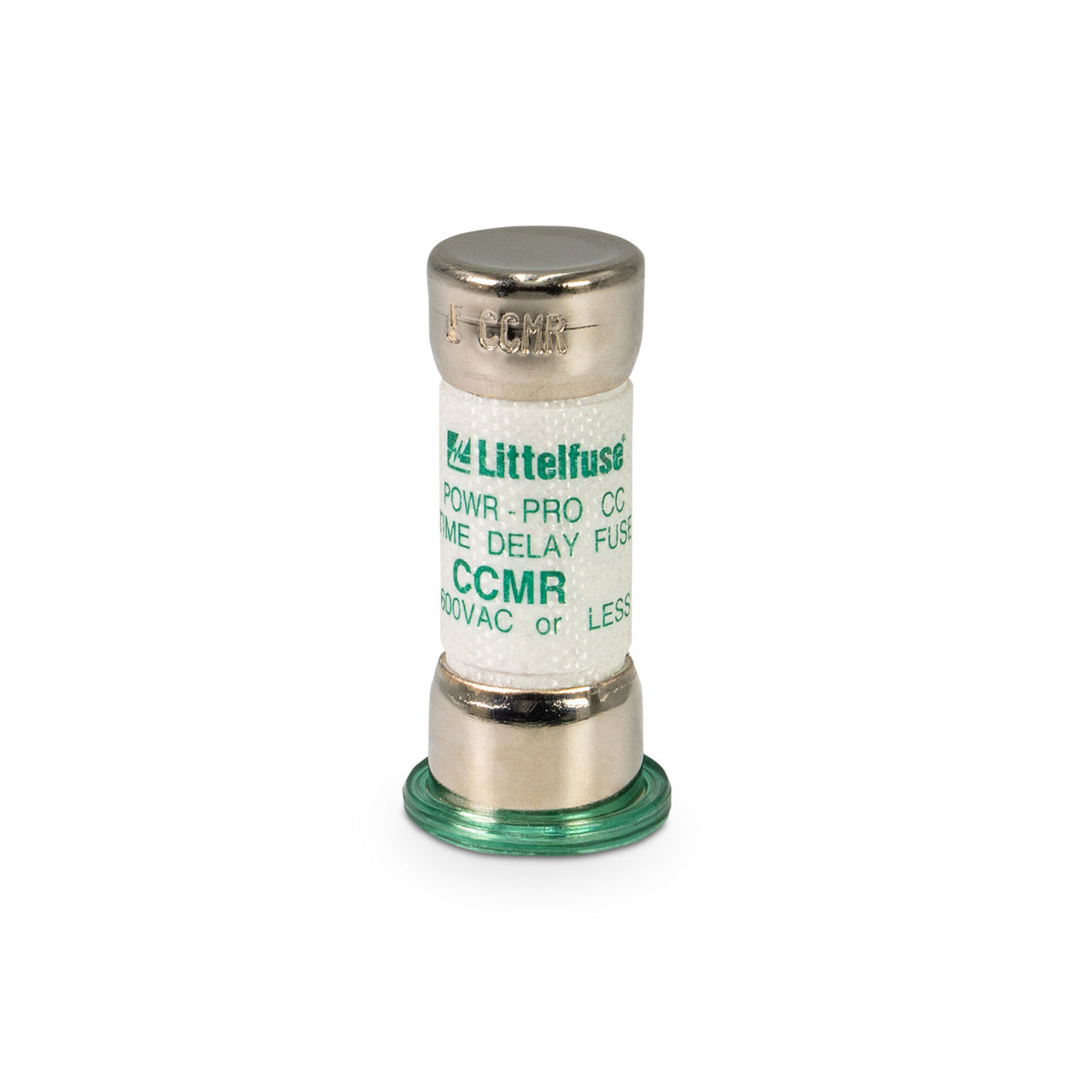

LITTELFUSE CCMR035.T Fuse 600V T/D Class Cd 35A

Product Description

The LITTELFUSE CCMR035.T is a Class CC fuse with a continuous current rating of thirty-five amps. This time delay fuse provides reliable performance while being effectively current limiting. It features a cartridge body design with ferrule terminals, making it suitable for various applications.

• Time delay fuse for motor circuit protection
• Current limiting to enhance safety
• Rated at 200 kA interrupting capacity

Product Highlights

The fuse is ideal for circuits needing type II protection. It helps prevent equipment damage during overloads and short circuits.

Product Information

Standard Information

• Brand: Littelfuse
• Fuse Class: Class CC

Technical Specifications

• Current Rating: 35 Amps
• Interrupting Rating: 200 kA @ 600 Vac
• Opening Type: Slo-Blo/Time Delay
• Maximum AC Voltage: 600 Volts
• Voltage Rating: 600 VAC/250 VDC
• Size: Class CC
• Family Style: Powr-Pro Fuse
• Frequency: 50/60 Hz
• Terminal Type: Ferrule
• Body Style: Cartridge
• Body Diameter: 0.85 inches
• Body Length: 1.88 inches
• Rejection: Rejection
