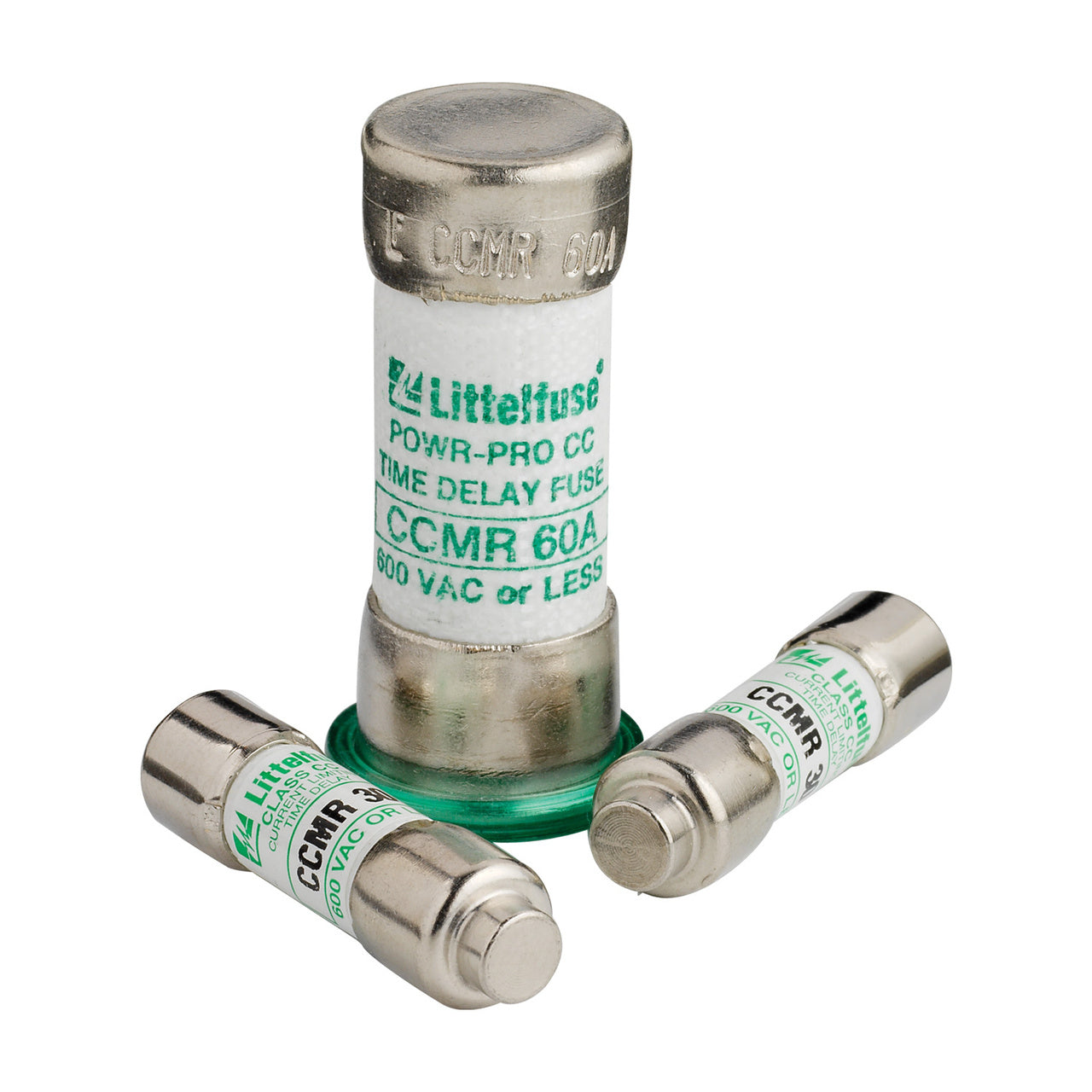

Littelfuse CCMR030.TXP Time Delay Fuse 600V 30A Class CC

Product Description

The Littelfuse CCMR030.TXP is a Class CC time delay fuse designed to offer efficient protection for motor circuits up to 40 horsepower. Rated at 30 amps with a 600V voltage capacity, this fuse is engineered to limit current precisely and protect sensitive circuit components from overcurrents. Delivers reliable performance in industrial and electrical systems.

• Dual element structure for improved protection
• Current limiting capabilities reduce system damages
• Compact form factor for space-efficient installation

Product Highlights

The CCMR030.TXP’s time delay feature allows for better handling of transient surges, ensuring stability in electrical systems. It features a dual element design, enhancing protection against short-circuit currents. With a high interrupting rating of 200,000A at 600VAC, it provides superior performance and safety.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: CCMR030.TXP

Technical Specifications

• Ampere Rating: 30 Amp
• Voltage Capacity: 600V
• Interrupting Rating: 200,000A@600VAC
• Body Type: Cartridge
• Mounting Type: Holder
• Element Type: Dual
