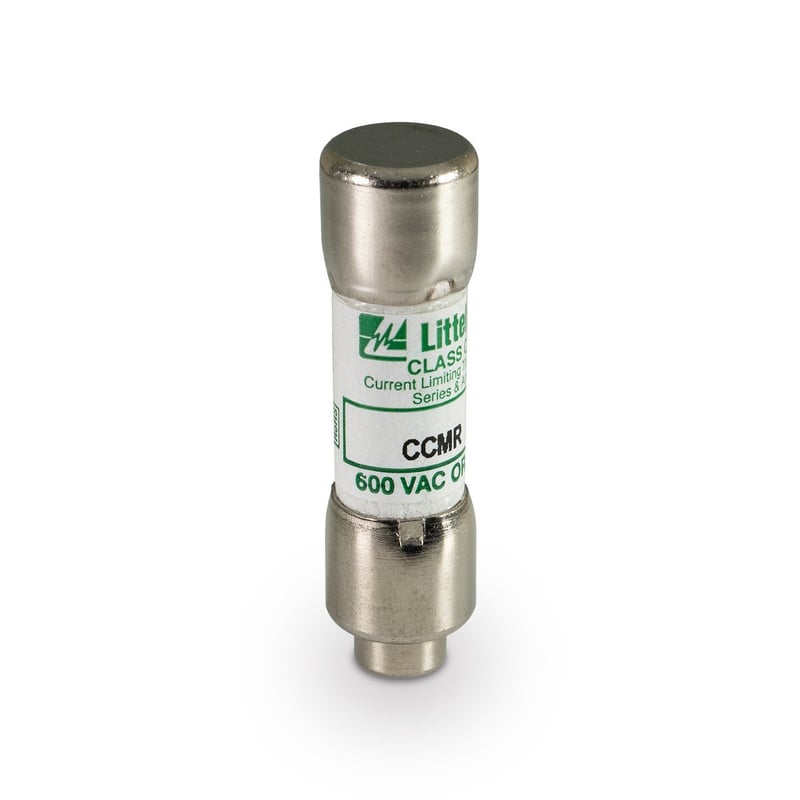

Littelfuse CCMR03.5TXP Time Delay Fuse 3.5 A 600 VAC/300 VDC 20/200 kA Interrupt Class CC

Product Description

Littelfuse CCMR03.5TXP is a time delay fuse designed for motor protection. It is rated for three point five amperes, with a voltage rating of six hundred volts alternating current or three hundred volts direct current. This fuse features a twenty/200 kA interrupting capacity, making it suitable for various applications.

• Optimal for space-saving motor protection
• Designed to handle high starting currents
• Complies with UL, CSA, and CE standards

Product Highlights

This fuse is ideal for protecting motors up to forty horsepower.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: CCMR03.5TXP

Technical Specifications

• Amperage Rating: 3.5 A
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 20/200 kA
• Frequency Rating: 50/60 Hz
• Body Type: Cartridge
• Body Size: 0.41 in Diameter x 1.5 in Length
• Mounting Type: Holder
• Terminal Type: Ferrule
• Class: CC
• Element: Dual
• Indicating/Non-Indicating: Non-Indicating
• Country of Origin: MX
