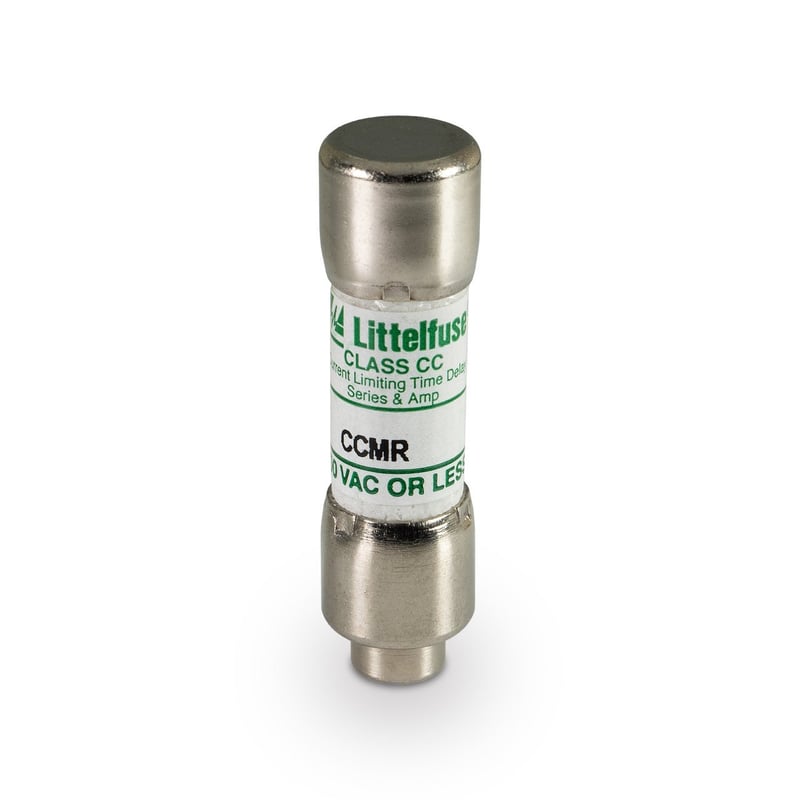

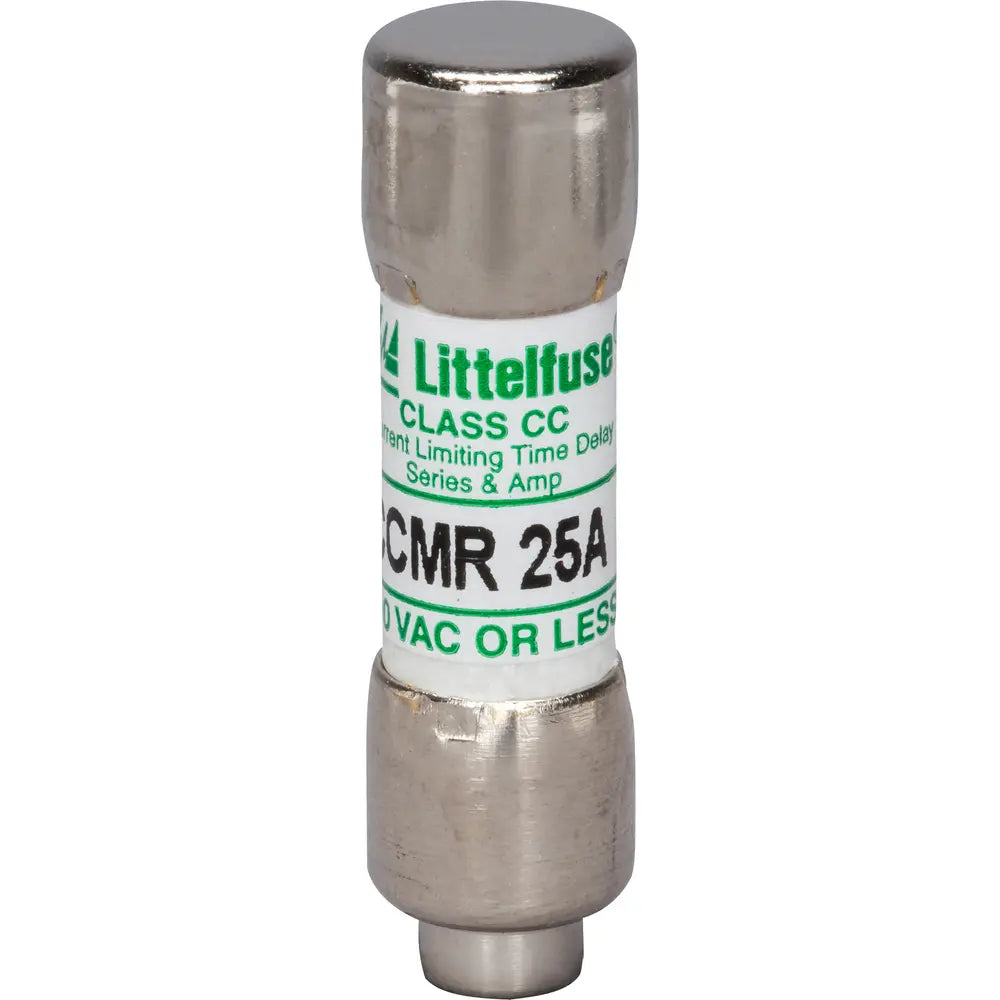

Littelfuse CCMR025.TXP Time Delay Fuse 25 A 600 VAC/500 VDC

Product Description

The Littelfuse CCMR025.TXP is a time-delay fuse with a current rating of twenty-five amperes and voltage ratings of six hundred volts alternating current and five hundred volts direct current. This fuse is ideal for protecting motors up to forty horsepower, particularly those with sustained starting currents. The fuse is classified as CC, providing excellent current-limiting capabilities compared to other UL listed fuses.

• Time-delay feature suitable for motor applications.
• Compact design effective for space-saving installations.
• High interrupting capacity of twenty kA for direct current and two hundred kA for alternating current.

Product Highlights

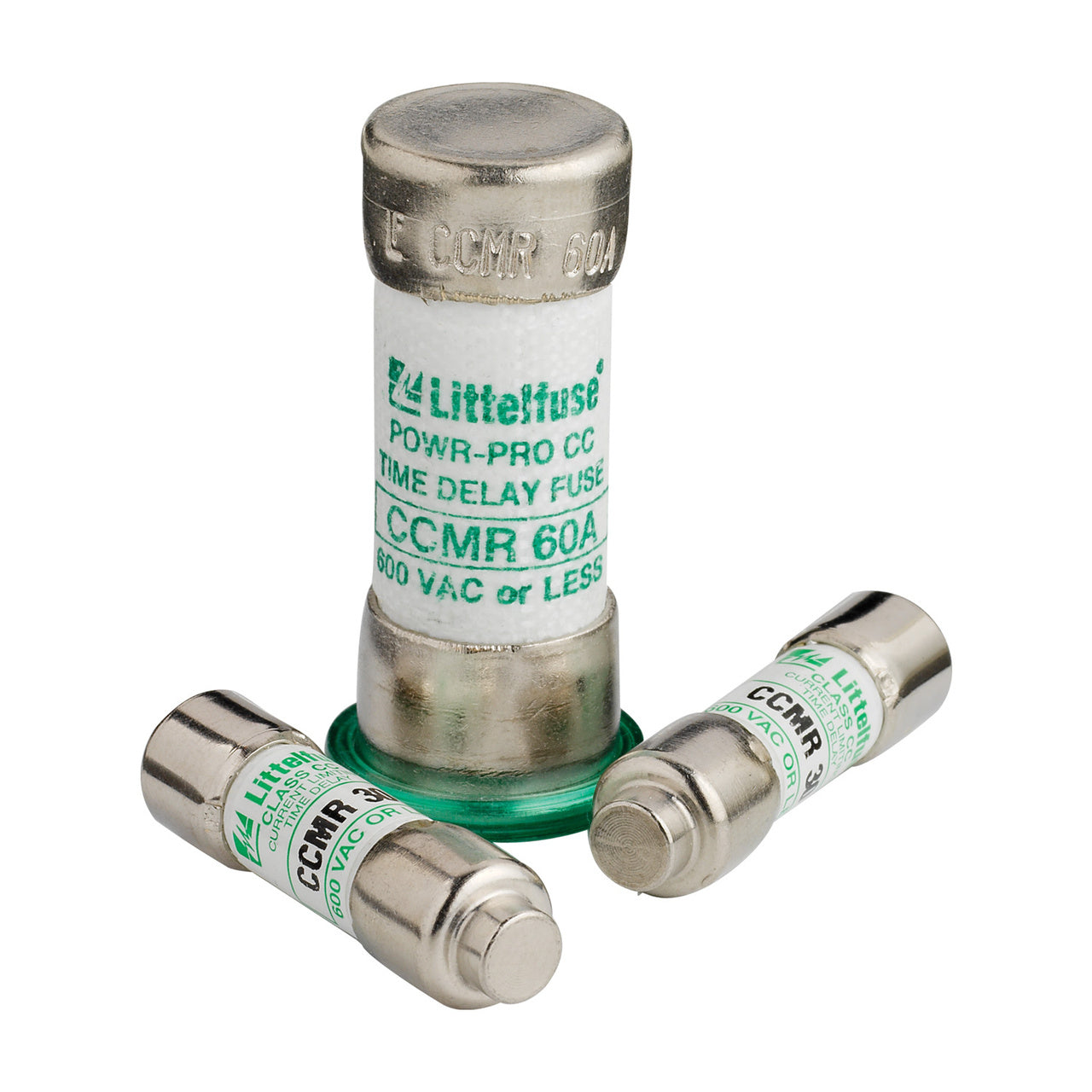

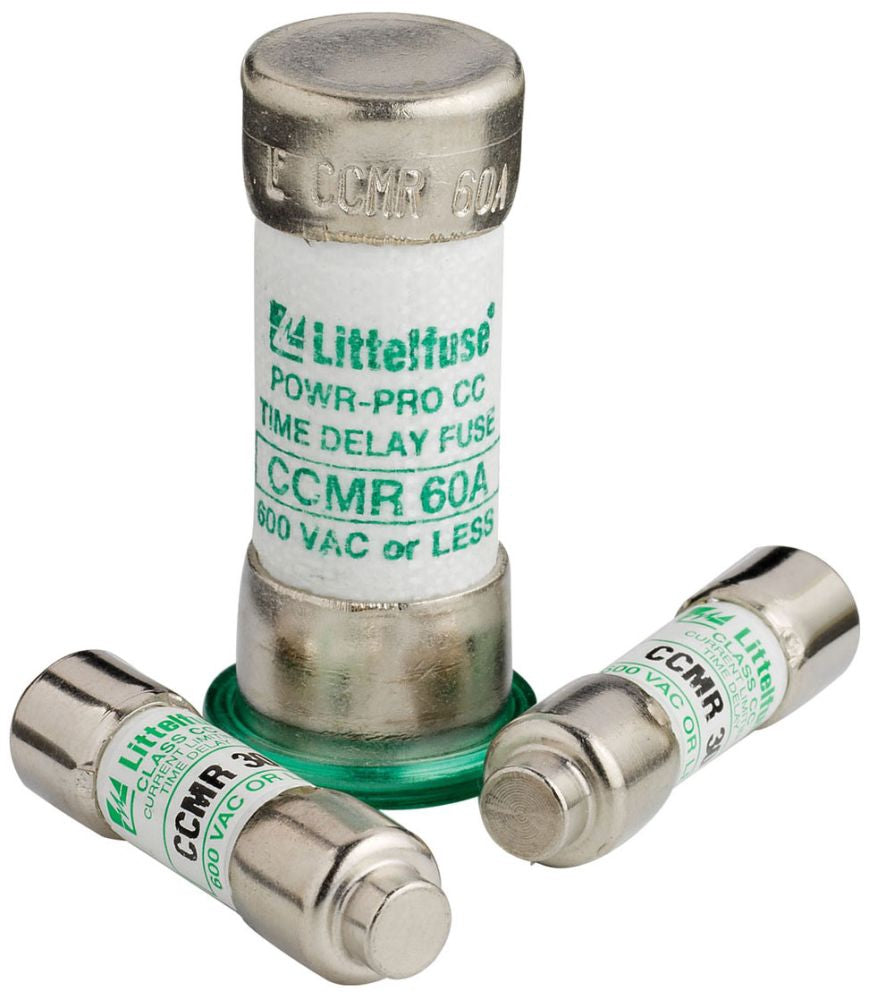

Designed for reliable operation in motor branch circuits, the Littelfuse CCMR series enhances protection and efficiency in electrical applications.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: CCMR025.TXP

Technical Specifications

• Voltage Rating: 600 VAC / 500 VDC
• Amperage Rating: 25 A
• Interrupting Rating: 20/200 kA
• Frequency Rating: 50/60 Hz
• Body Size: 0.41 inches diameter x 1.5 inches length
• Type: Dual Element
• Mounting Type: Holder
• Terminal Type: Ferrule
