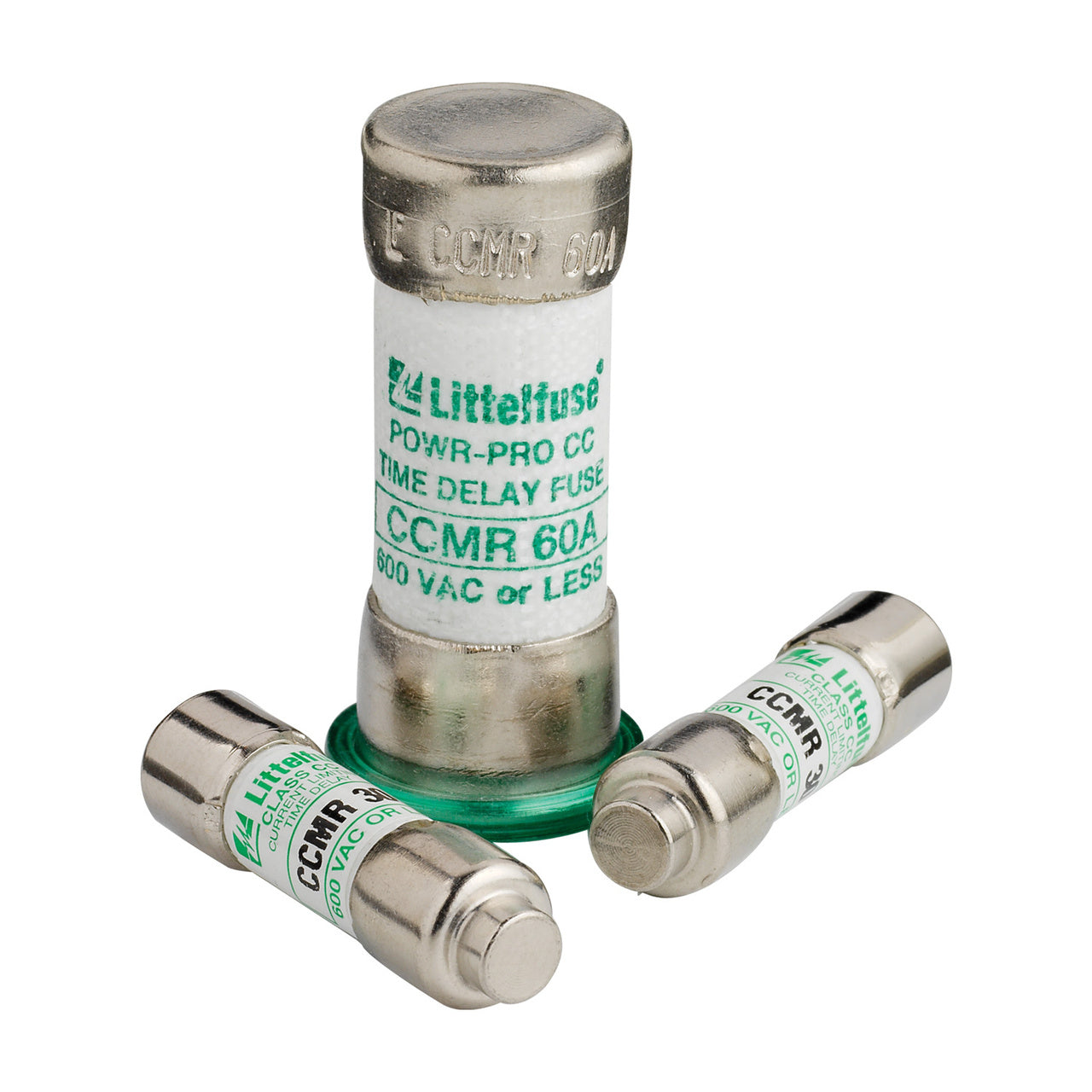

Littelfuse CCMR025.TXP LFSE CCMR025.TXP FUSE 600V T/D CLAS

Product Description

The Littelfuse CCMR025.TXP fuse is designed for space-saving protection of motors up to forty horsepower. This time-delay fuse withstands the sustained starting currents typical of small motors. It is the smallest sixty amp fuse available, rated at six hundred volts. Compared to other UL listed fuses, Class CC fuses are the most current-limiting option, making them ideal for critical applications.

• Rated for 600 volts and 25 amps
• Features a dual element and time-delay capability
• Supports applications with motors and branch circuit protection

Product Highlights

This fuse is part of the POWR-GARD CCMR Series, providing reliable protection in a compact size.

Product Information

Standard Information

• Brand: Littelfuse
• Sub Brand: POWR-GARD CCMR Series

Technical Specifications

• Catalog Number: CCMR025.TXP
• Amperage Rating: 25 A
• Voltage Rating: 600 VAC / 500 VDC
• Interrupting Rating: 200 kA (symmetrical)
• Diameter: 0.41 inches
• Length: 1.5 inches
• Application: Motors and branch circuit
• Approval: UL 248-4, CSA, CE
• Country of Origin: Mexico
