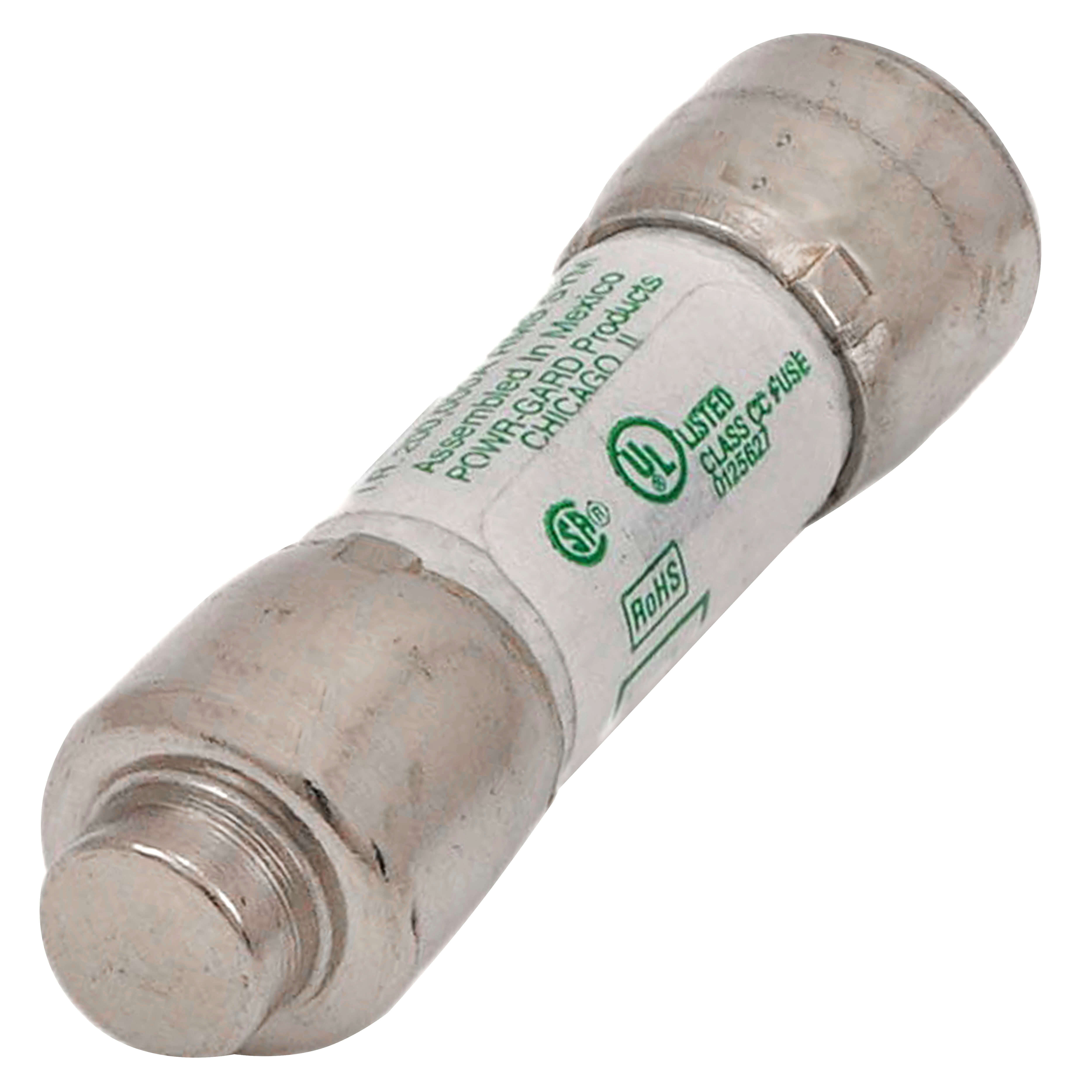

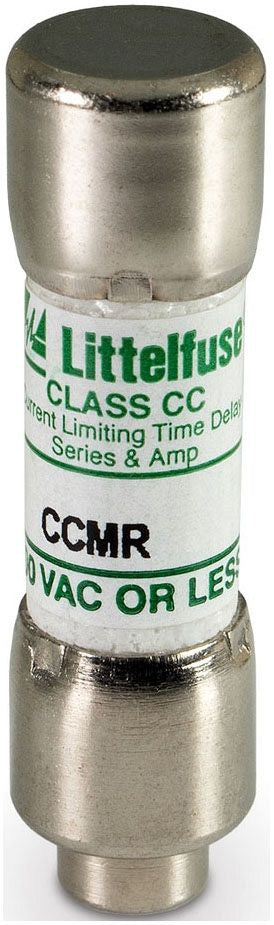

Littelfuse CCMR020.TXP FUSE 600V T/D CLAS

Product Description

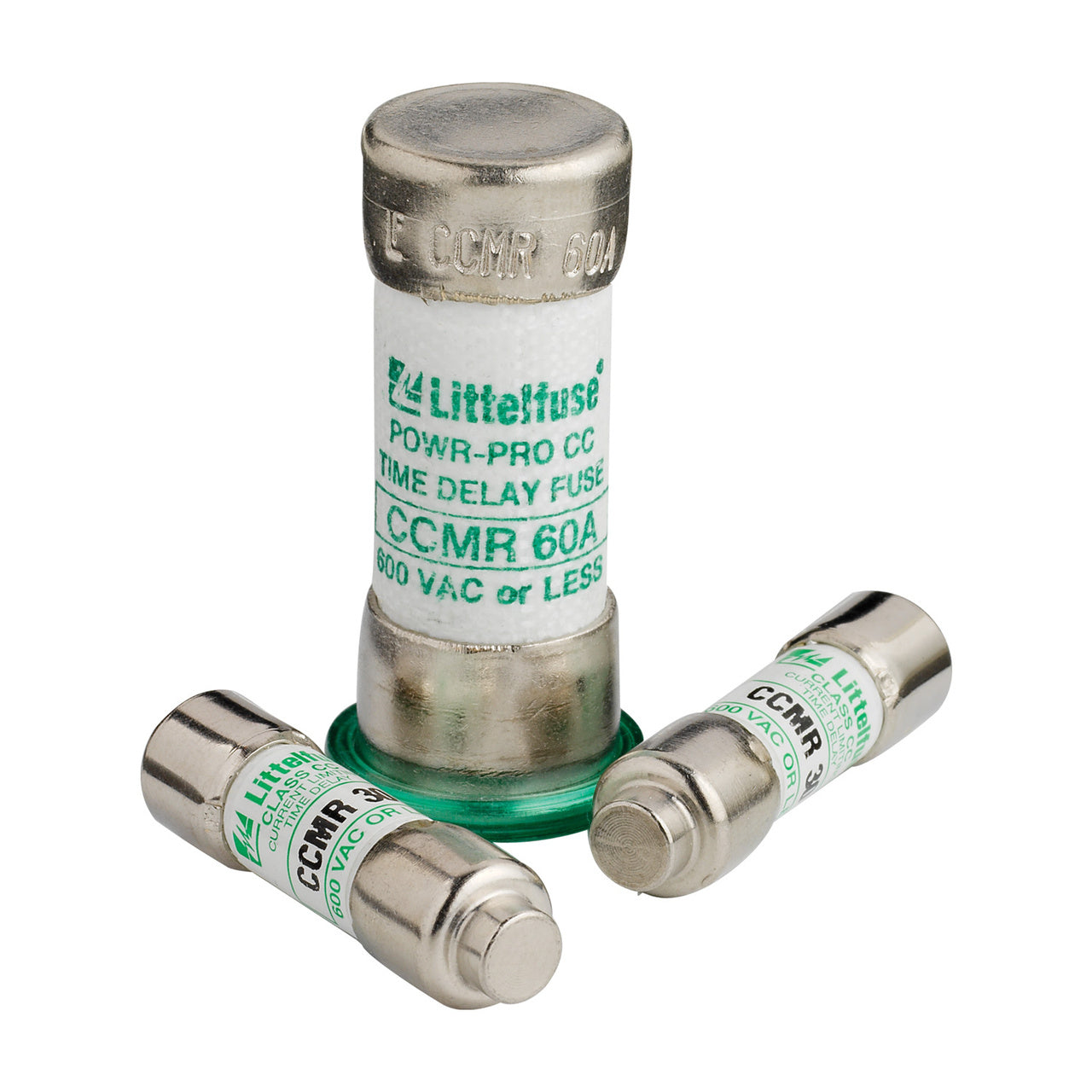

The Littelfuse CCMR020.TXP is a 20 amp, Class CC time-delay fuse designed for reliable performance in electrical systems with a voltage rating of six hundred volts. This fuse is suitable for protecting motor circuits up to forty horsepower. The CCMR series has a dual-element construction that allows it to handle high starting currents typically found in small motors. The fuse’s design is compact, making it space-efficient and effective for use in tight installations. It is engineered to provide superior current limiting capabilities, significantly reducing damage caused by short-circuit currents.

• Current limiting design reduces heating effects
• Compact construction for space-saving installations
• Ideal for motor protection applications

Product Highlights

This fuse offers a high interrupting rating of two hundred thousand amperes, ensuring safety and reliability in applications.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: CCMR020.TXP

Technical Specifications

• Amperage Rating: 20 amp
• Voltage Rating: 600 VAC / 500 VDC
• Interrupting Rating: 200,000 amperes
• Type: Class CC
• Body Size: 0.41 inches diameter x 1.5 inches long
• Element: Dual
• Mounting Type: Holder
• Terminal Type: Ferrule
