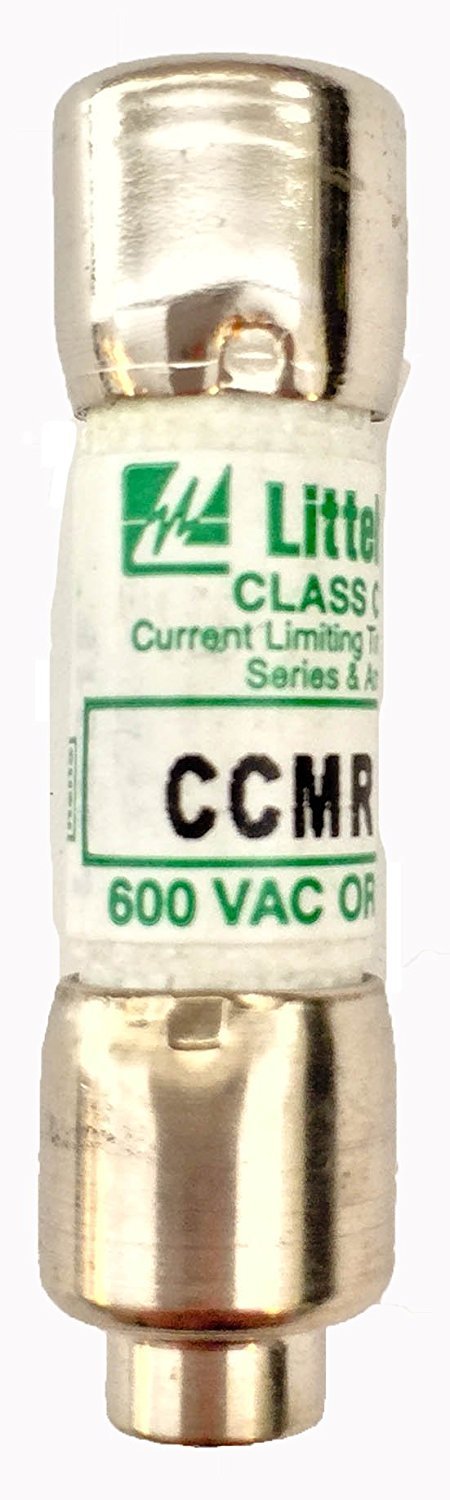

Littelfuse CCMR020.TXP Class CC Fuse Time Delay 600V 20 Amp (Pack of 10)

Product Description

The Littelfuse CCMR020.TXP Class CC Time Delay Fuse is designed for reliable protection of motor circuits. Rated at 600V and 20 Amp, this fuse stands out for its current-limiting capabilities. It efficiently safeguards motors up to 40 HP, ensuring minimal space usage in control panels.

• Provides Type II protection to motor circuits
• Extremely current-limiting compared to other fuses
• Rated for high interrupt capacity

Product Highlights

The Littelfuse CCMR020.TXP fuse offers superior protection and contributes to space efficiency by reducing required panel-mounting space. The 20 Amp fuse is suitable for both motor protection and branch circuit applications.

Product Information

Standard Information

• Brand: Littelfuse
• MPN: CCMR020.TXP
• Voltage: 600V
• Amperage: 20 Amp

Technical Specifications

• Type: Class CC
• Element: Dual
• Interrupt Rating: 200 kA
• Standards/Approvals: UL 248-4, CSA, CE
• Body Type: Cartridge
• Terminals: Ferrule
• Frequency: 50/60 Hz
• Dimensions: 0.41 in Dia x 1.5 in L
• Application: Motor and motor branch circuit protection
• Mounting Type: Holder
