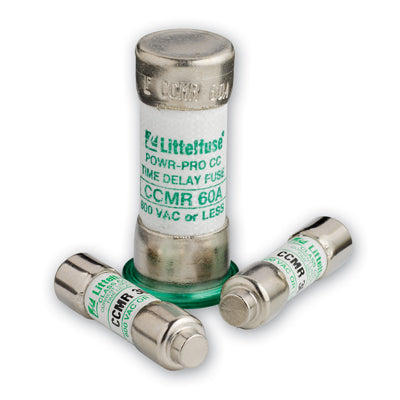

Littelfuse CCMR012.TXP Time Delay Fuse 12 A 600 VAC 500 VDC Class CC

Product Description

Introducing the Littelfuse CCMR012.TXP, a robust time delay fuse designed for motor and branch circuit protection. Crafted for high precision and reliability, the dual-element specifications offer exceptional performance in a compact 0.41 inch diameter by 1.5 inch length cartridge body.

• Dual-element design enhances time delay performance for motor protection.
• Capable of handling 600 VAC or 500 VDC with an interrupting rating of 20/200 kA.
• Designed to be non-indicating which simplifies the setup and maintains a clean installation aesthetic.

Product Highlights

This fuse excels in applications demanding high specifications, ensuring both safety and efficiency. It is particularly effective in space-saving setups, where reliable performance under high-starting currents is crucial.

Product Information

Standard Information

• Brand: Littelfuse
• Series: POWR-GARD CCMR Series
• Origin: Made in Mexico

Technical Specifications

• Amperage Rating: 12 A
• Voltage Rating: 600 VAC/500 VDC
• Interrupt Rating: 20/200 kA
• Frequency: 50/60 Hz
• Terminal Type: Ferrule
• Mounting Type: Holder
• Body Size: 0.41 in Dia x 1.5 in L
• Standards/Approvals: UL 248-4, CSA LR29862, CE Certified
