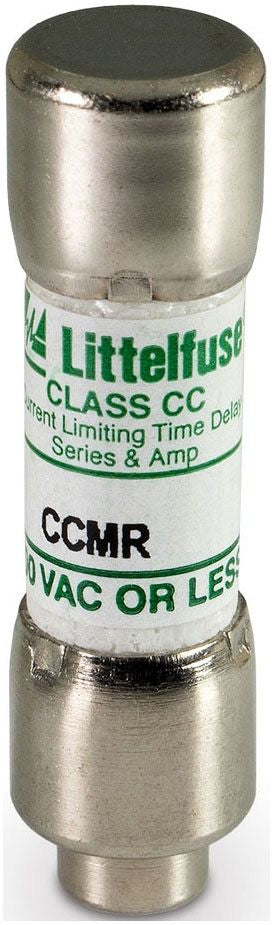

Littelfuse CCMR012.TXP Time Delay Fuse 12 A 600 VAC/500 VDC 20/200 kA Interrupt Class CC

Product Description

Littelfuse Time Delay Fuse, model CCMR012.TXP, is suitable for applications requiring reliable circuit protection. This fuse features a rated current of twelve amps and operates at six hundred volts alternating current or five hundred volts direct current. The interrupt rating reaches up to two hundred thousand amps. This product is designed for dual-element protection, ideally used in motor and branch circuit applications.

• Amperage Rating: 12 A
• Voltage Rating: 600 VAC/500 VDC
• Interrupting Capacity: 20/200 kA

Product Highlights

This fuse provides excellent performance in protecting electrical components from overloads and short circuits.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Catalog Number: CCMR012.TXP

Technical Specifications

• Amperage Rating: 12
• Application: Motors & branch circuit
• Special Features: Time-Delay
• Standard: 248-4 Class CC
• Country of Origin: Mexico
• Body Size: 0.41 in Diameter x 1.5 in Length
• Terminal Type: Ferrule
• Type: Class CC
