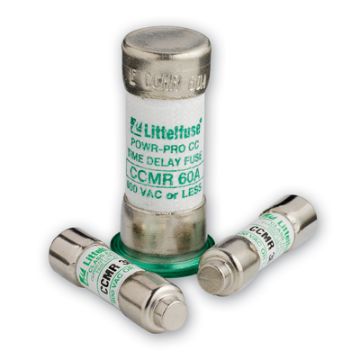

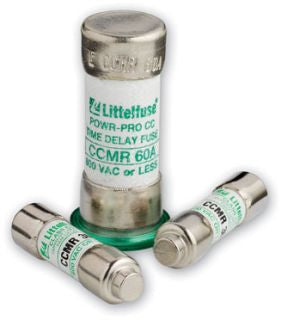

Littelfuse CCMR007.TXP LITTELFUSE FUSE 7AMP 600VAC 20/200 kA INTERRUPT CLASS CC

Product Description

The Littelfuse CCMR007.TXP is a time delay fuse designed for reliable protection in motor and motor branch circuit applications. This fuse has a rating of seven amps and operates at voltages up to six hundred volts alternating current and two hundred fifty volts direct current. It features a dual element design that effectively limits current and minimizes damage during short circuits.

• Designed for motors up to forty horsepower.
• Current limiting capabilities reduce risk of damage due to short circuits.
• Compact cartridge body improves space efficiency.

Product Highlights

This fuse is essential for protecting motors from overloads and short circuits, ensuring long-lasting performance. It is suited for use in various electrical systems requiring dependable circuit protection.

Product Information

Standard Information

• Brand: Littelfuse
• Type: Class CC

Technical Specifications

• MPN: CCMR007.TXP
• Voltage Rating: 600 VAC / 250 VDC
• Amperage Rating: 7 A
• Interrupt Rating: 20/200 kA
• Frequency Rating: 50/60 Hz
• Body Size: 0.41 in Dia x 1.5 in L
• Body Type: Cartridge
• Mounting Type: Holder
• Terminal Type: Ferrule
• Indicating/Non-Indicating: Non-Indicating
• Country of Origin: Mexico
• Compliance Standards: UL 248-4 | E81895 | CSA LR29862 | CE Certified
