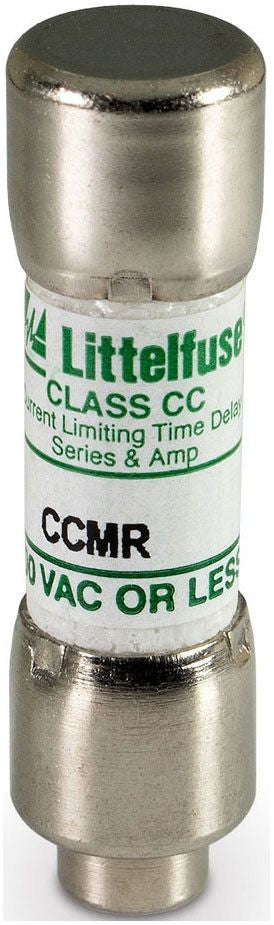

Littelfuse CCMR006P CLASS CC DUAL ELEMENT TIME DELAY FUSE - ROHS

Product Description

Littelfuse CCMR006P is a Class CC dual element time delay fuse. It operates at a voltage rating of six hundred volts AC and two hundred fifty volts DC. The ampere rating is six. This fuse is designed for applications that require protection against overloads in motor and motor branch circuits. It has current-limiting capabilities and a dual-element design that interrupts fast short-circuit conditions.

• Voltage Rating: 600 VAC/250 VDC
• Interrupting Rating: 20/200 kA
• Body Size: 0.41 inches diameter x 1.5 inches long

Product Highlights

This fuse is critical in preventing damage caused by short-circuit currents through its rapid interruption capability, making it suitable for both residential and commercial applications.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Model Number: CCMR006P

Technical Specifications

• Amperage Rating: 6 A
• Body Type: Cartridge
• Frequency Rating: 50/60 Hz
• Indicating/Non-Indicating: Non-Indicating
• Mounting Type: Holder
• Terminal Type: Ferrule
• Compliance: UL 248-4, CSA, CE, ROHS
