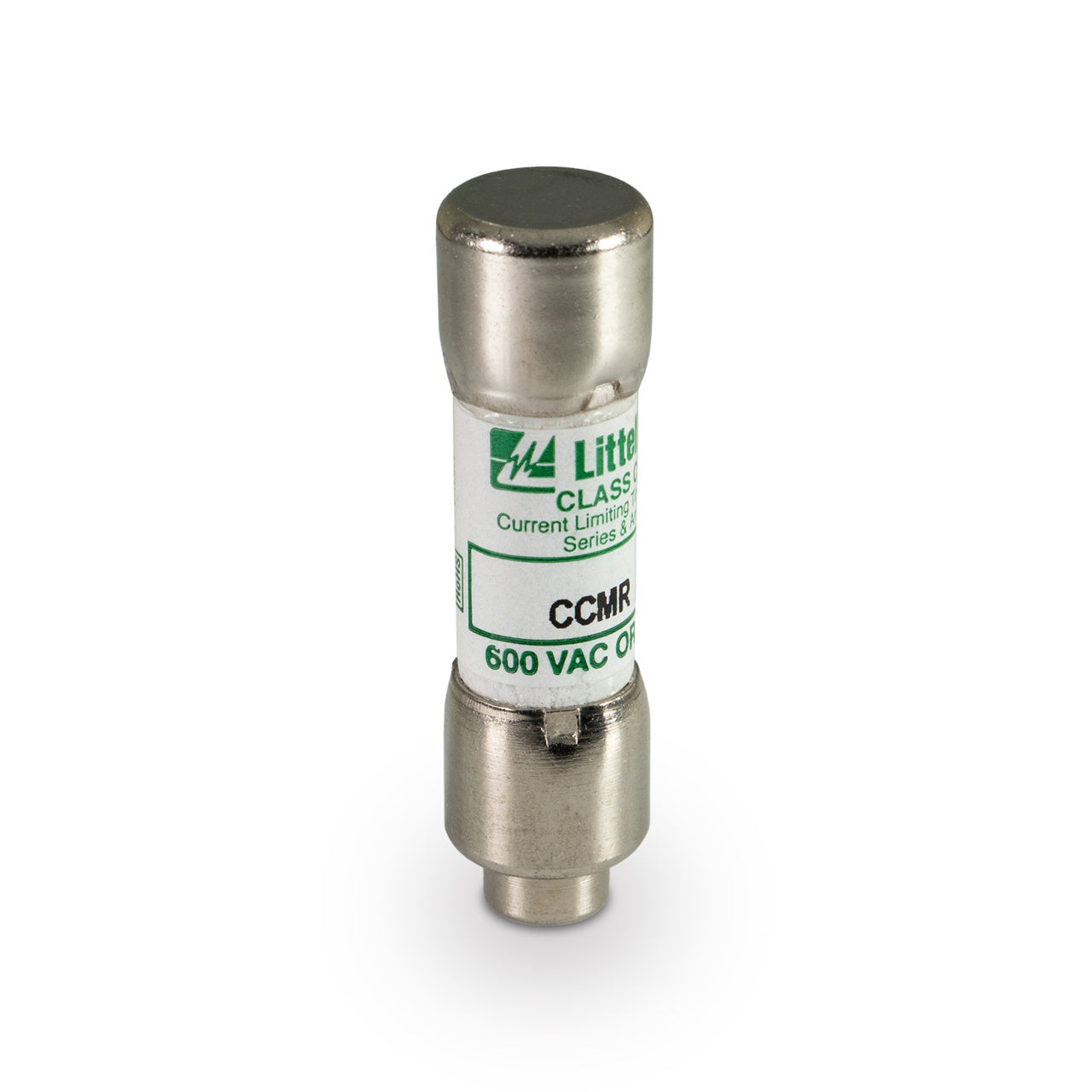

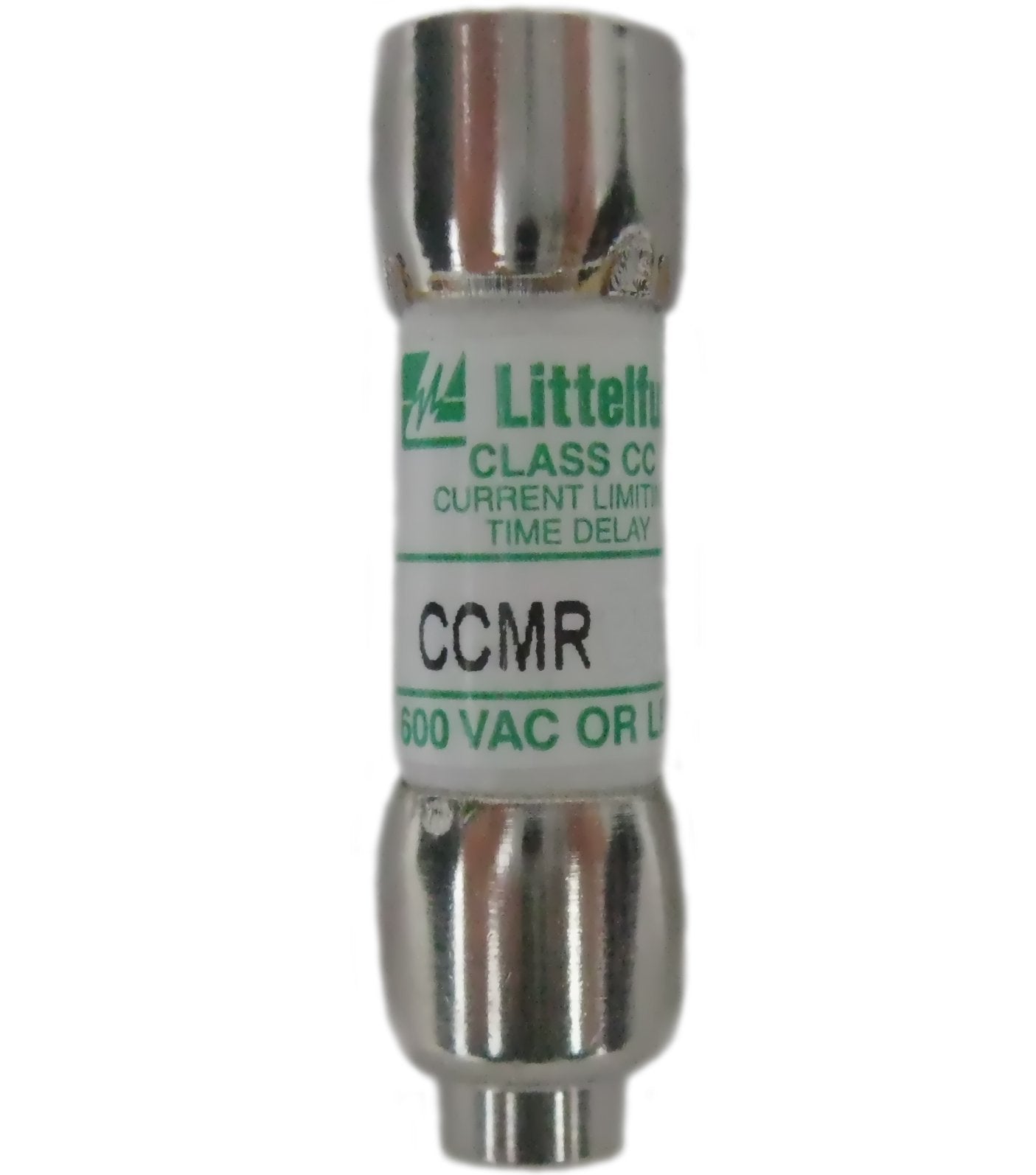

Littelfuse CCMR006 Class CC Time Delay Fuse 6 Amp 600 VAC (1.50 in) Bussmann LP-CC

Product Description

Littelfuse CCMR006 is a Class CC time-delay (Slo-Blo) cartridge fuse rated 6 A and 600 VAC, intended for general-purpose power distribution and motor circuit protection. The CCMR006 features a cartridge mounting with rejection terminal, a 200,000 A interrupting rating at 600 VAC and a 20,000 A interrupting rating at DC. Physical dimensions are approximately 0.41 in diameter by 1.50 in length.

• 6 A ampere rating; rated 600 VAC and 500 VDC
• Interrupting rating: 200,000 A at 600 VAC and 20,000 A at DC; time-delay (Slo-Blo) characteristic
• Cartridge mounting with rejection terminal; dimensions 0.41 in diameter x 1.50 in length

Product Highlights

Class CC time-delay cartridge fuse, 6 A, 600 VAC, 500 VDC rating, 200 kA AC / 20 kA DC interrupting capability, cartridge rejection mounting

Product Information

Standard Information

• Brand: LITTELFUSE
• Manufacturer Part Number: CCMR006
• Country of Origin: Mexico
