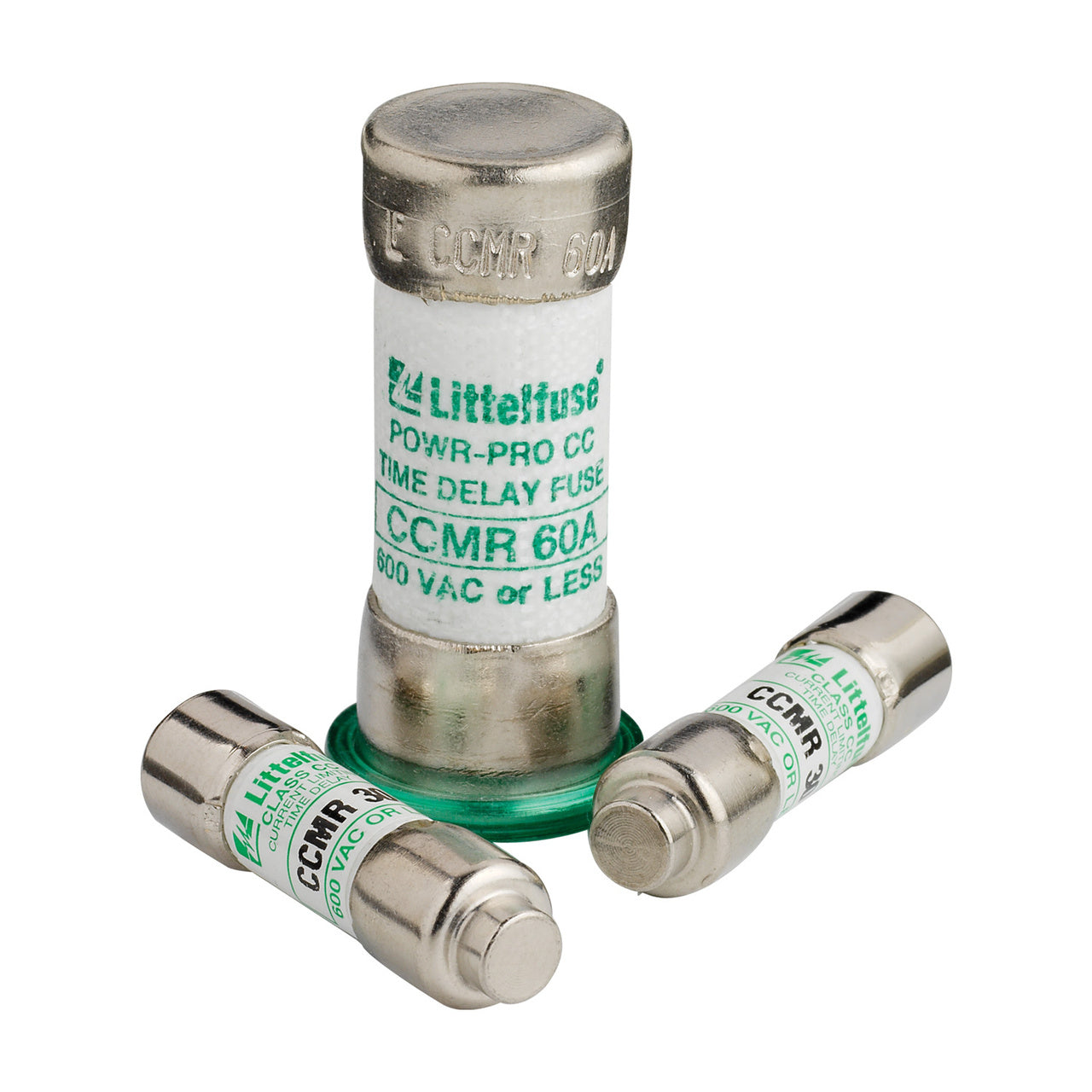

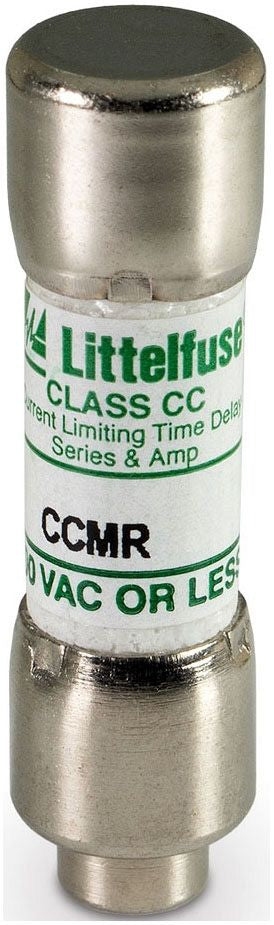

Littelfuse CCMR005.TXP LFSE CCMR005.TXP FUSE 600V T/D CLAS 600V

Product Description

The Littelfuse CCMR005.TXP fuse is a time-delay fuse rated for five amps and designed for use with motors and branch circuits. This fuse is part of the POWR-GARD series and offers robust protection for motors up to forty horsepower, effectively limiting damaging currents during motor startup.

• Current limiting capabilities
• Rated for 600 volts
• Time-delay feature to accommodate motor starting currents

Product Highlights

This fuse protects circuits by quickly limiting fault currents. The design allows it to withstand the inrush currents associated with motor starts while providing reliable operation.

Product Information

Standard Information

• Brand: Littelfuse
• Manufacturer: Littelfuse

Technical Specifications

• Amperage Rating: 5 A
• Voltage Rating: 600 VAC/250 VDC
• Interrupting Rating: 20/200 kA
• Body Size: 0.41 inches diameter by 1.5 inches length
• Type: Class CC
• Mounting Type: Holder
• Terminal Type: Ferrule
• Frequency Rating: 50/60 Hz
