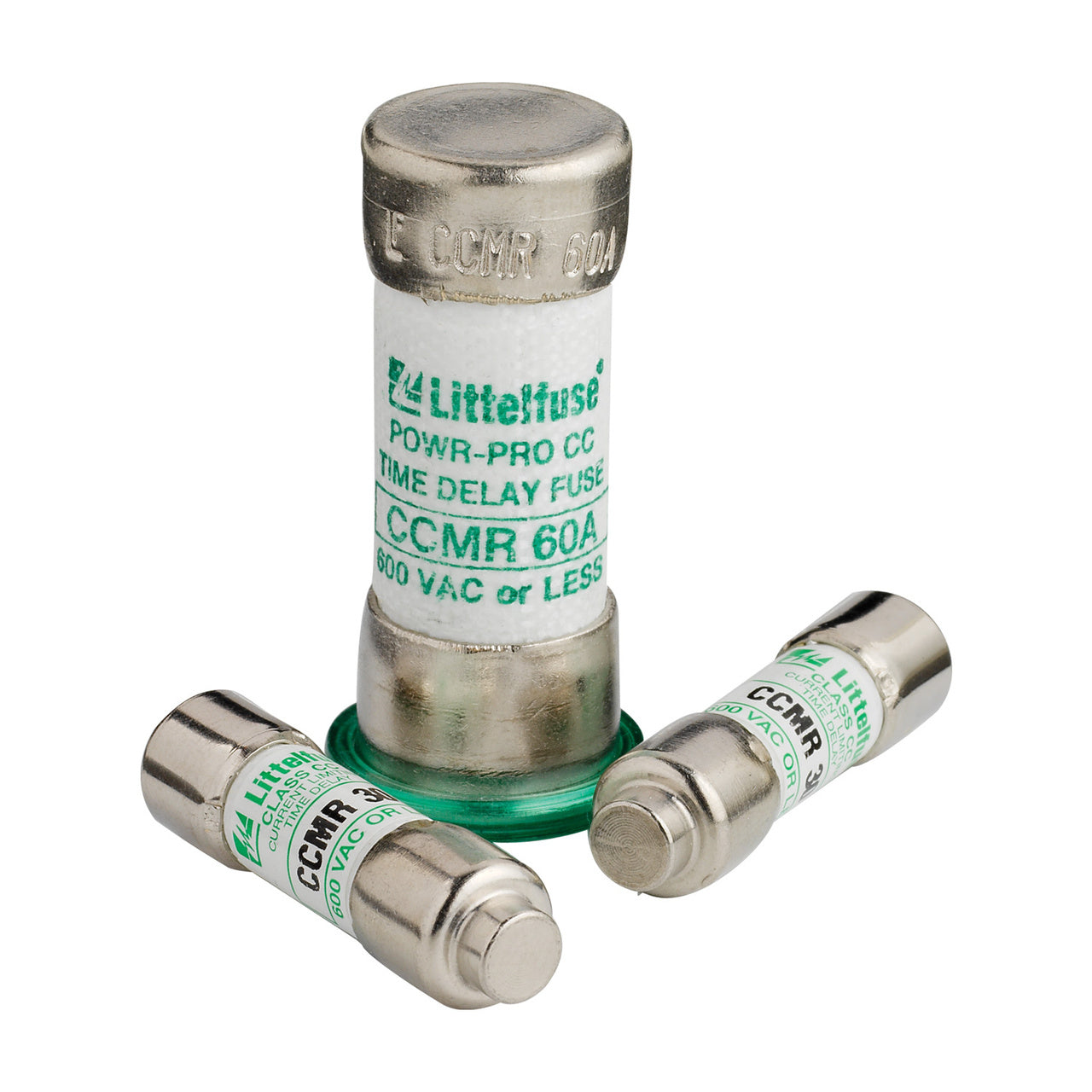

Littelfuse CCMR005.TXP FUSE 600V T/D CLAS

Product Description

The Littelfuse CCMR005.TXP fuse is a reliable time-delay fuse designed for effective protection in motor applications. This fuse is rated for 600 volts and is suitable for use with branch circuits and motors up to forty horsepower. It provides robust performance against sustained starting currents. It is one of the smallest sixty amp fuses available.

• Rated for 600 volts
• 5 amp rating
• Current-limiting characteristics

Product Highlights

This fuse is part of the POWR-GARD CCMR series, specifically engineered for spaces requiring compact fuse solutions while maintaining high performance in electrical protection.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Brand: Littelfuse

Technical Specifications

• Catalog Number: CCMR005.TXP
• Amperage: 5 Amp
• Voltage Rating: 600 VAC / 250 VDC
• Body Size: 0.41 inches diameter x 1.5 inches length
• Type: Class CC
• Interrupt Rating: 20/200 kA
• Frequency Rating: 50/60 Hz
• Application: Motors and branch circuits
