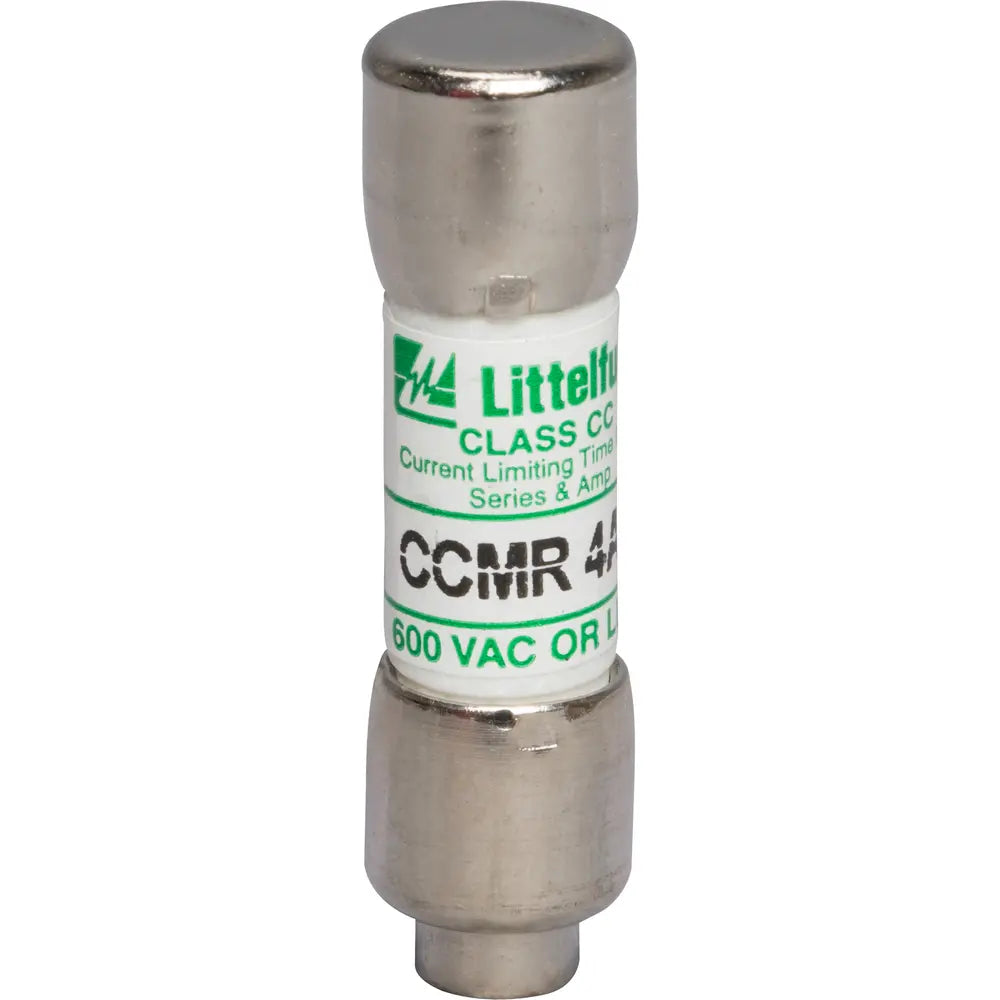

Littelfuse CCMR004.TXP LIT Time Delay Fuse, 4 A, 600 VAC/300 VDC, 20/200 kA Interrupt, CC Class

Product Description

The Littelfuse CCMR004.TXP is a reliable time delay fuse designed for motor protection in applications up to forty horsepower. It operates at a voltage rating of six hundred volts alternating current and three hundred volts direct current with a current rating of four amperes. This fuse features a dual element design, making it ideal for handling sustained inrush currents which are common during motor startup.

• Amperage Rating: 4 A
• Interrupt Rating: 20/200 kA
• Body Size: 0.41 inches diameter by 1.5 inches length

Product Highlights

This fuse is constructed with a cartridge body that is mounted in a holder, suitable for various applications in motor and branch circuit protection.

Product Information

Standard Information

• Voltage Rating: 600 VAC/300 VDC
• Frequency Rating: 50/60 Hz

Technical Specifications

• Class: CC
• Element: Dual
• Terminal Type: Ferrule
• Indicating/Non-Indicating: Non-Indicating
• Country of Origin: Mexico
• Standards: UL 248-4, CSA
• Warning: This product can expose you to chemicals known to the State of California to cause cancer.
