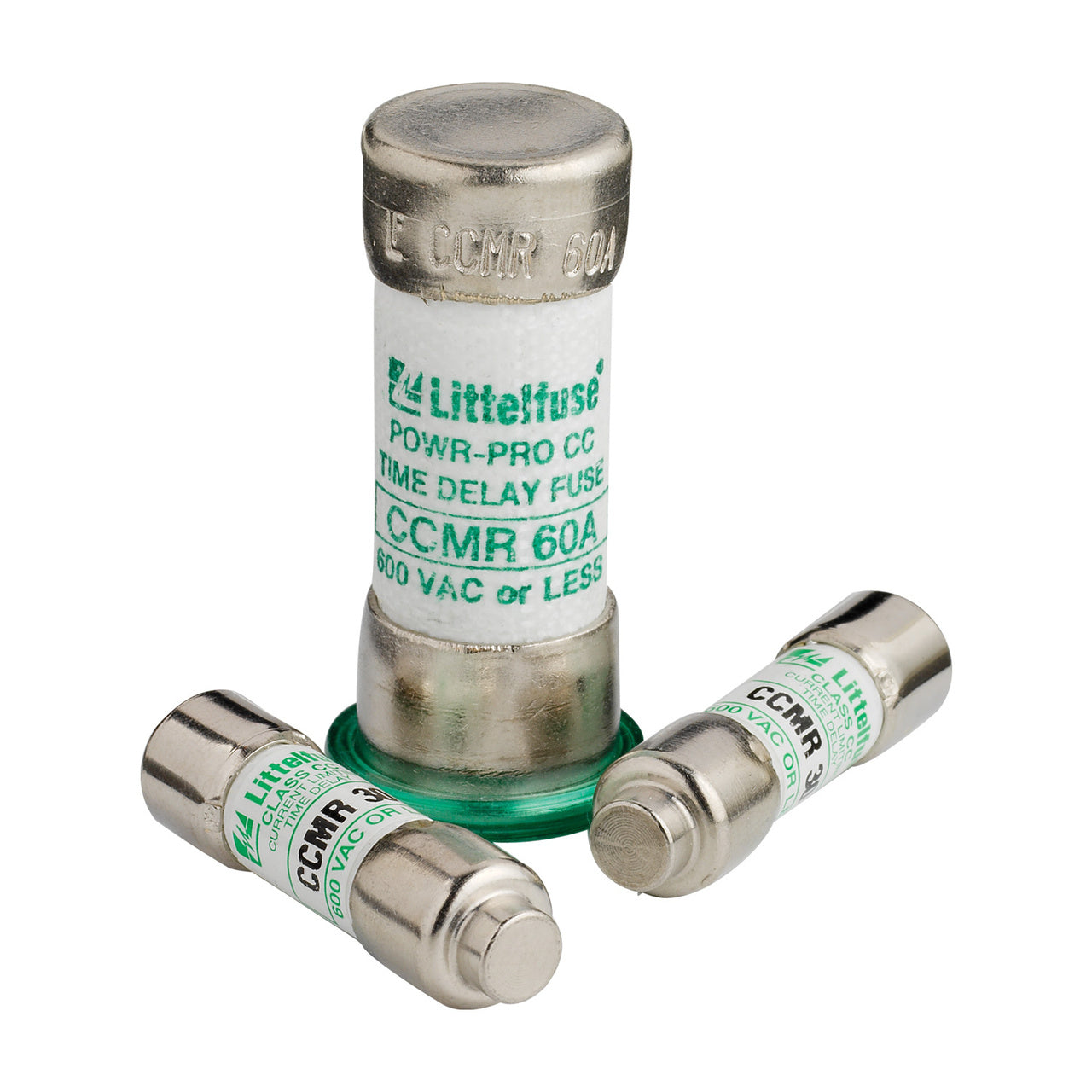

Littelfuse CCMR004.TXP LFSE CCMR004.TXP FUSE 600V T/D CLAS

Product Description

The Littelfuse CCMR004.TXP is a 4 Amp fuse designed for 600 VAC applications. It is part of the POWR-GARD CCMR series, known for its current-limiting capabilities. This fuse is suitable for protecting small motors and circuits from overloads and short circuits. The compact design helps save space while providing reliable performance in critical applications.

• Category: Class CC
• Interrupt Rating: 200,000 Amp
• Features: Time-delay for safe operation

Product Highlights

Engineered to support motor and branch circuit applications, this fuse helps mitigate damage caused by short-circuit conditions. Its dual element design ensures reliable performance under sustained start-up conditions typical of small motors.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Catalog Number: CCMR004.TXP

Technical Specifications

• Amperage Rating: 4 A
• Voltage Rating: 600 VAC / 300 VDC
• Body Type: Cartridge
• Body Size: 0.41 inches diameter x 1.5 inches length
• Frequency Rating: 50/60 Hz
• Terminal Type: Ferrule
• UL Approval: UL 248-4
• Country of Origin: Mexico
