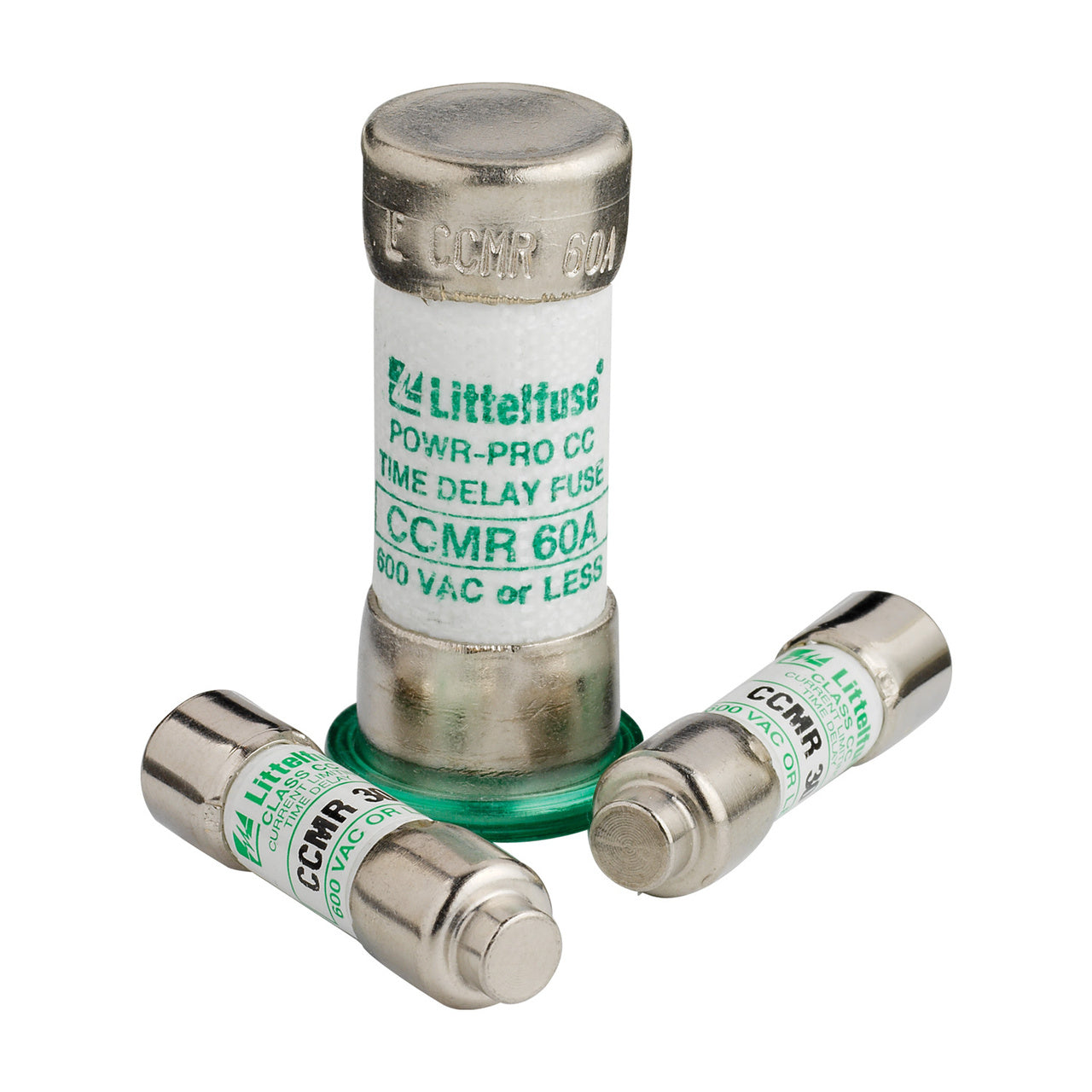

Littelfuse CCMR003.TXP LFSE CCMR003.TXP FUSE 600V T/D CLAS

Product Description

The Littelfuse CCMR003.TXP is a Class CC time delay fuse rated for three amps and designed for use in applications requiring reliable circuit protection. This fuse is suitable for protecting small motors and branch circuits from overloads and short circuits. Its time-delay feature allows it to withstand the inrush currents associated with motor starts without blowing, making it ideal for motors up to forty horsepower.

• Current limiting design.
• Smallest 60 amp fuse rated at 600 volts.
• Meets UL 248-4 standards.

Product Highlights

Perfect for applications involving motors, the Littelfuse CCMR series fuses are designed to offer superior protection in a compact size. When used in conjunction with appropriate equipment, these fuses decrease the risk of damage to the circuits.

Product Information

Standard Information

• Catalog Number: CCMR003.TXP
• Brand: Littelfuse

Technical Specifications

• Amperage Rating: 3 A
• Voltage Rating: 600 VAC / 300 VDC
• Body Type: Cartridge
• Maximum Interrupting Rating: 200 kA
• Type: Class CC
• Temperature Rating: 50/60 Hz
• Terminal Type: Ferrule
• Country of Origin: Mexico
