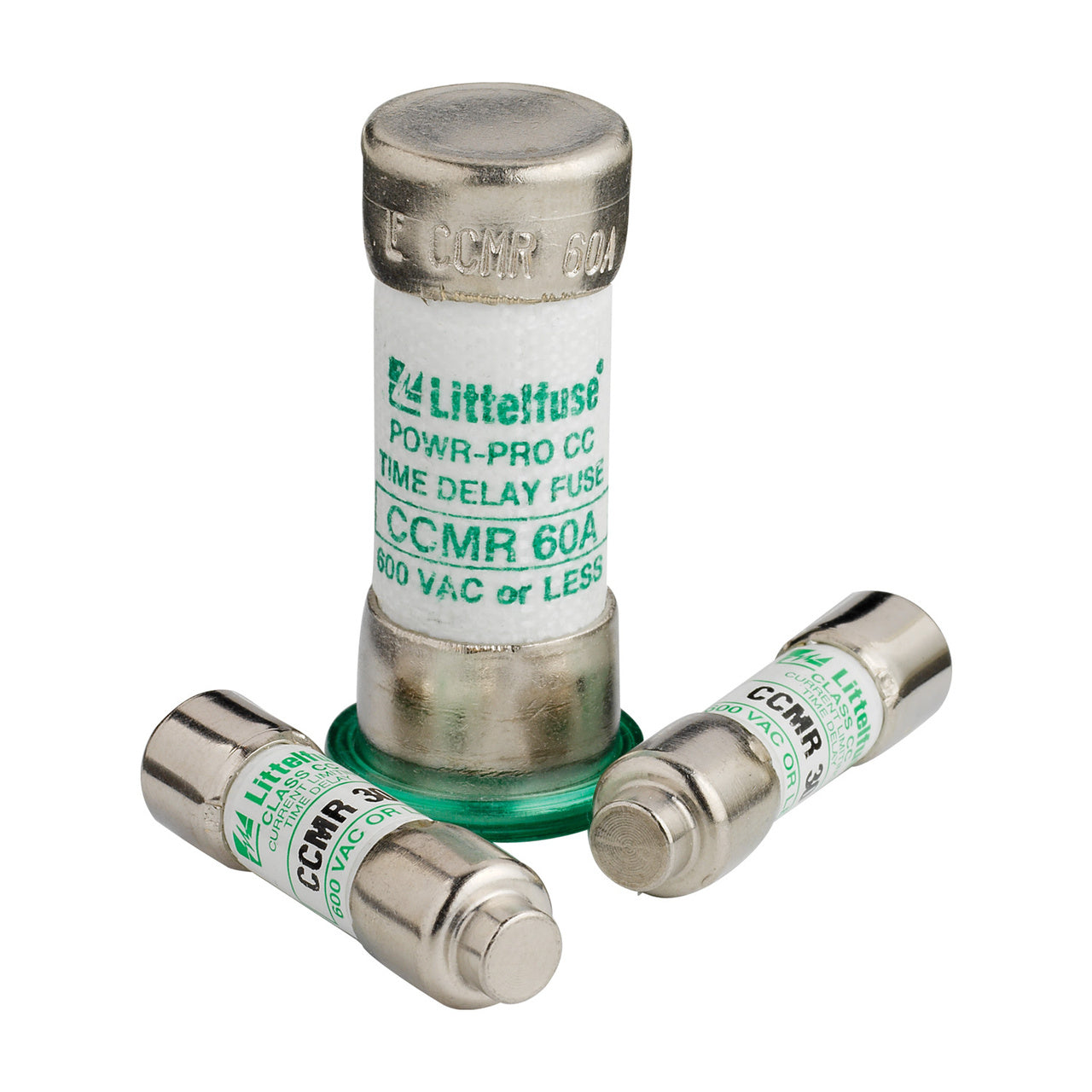

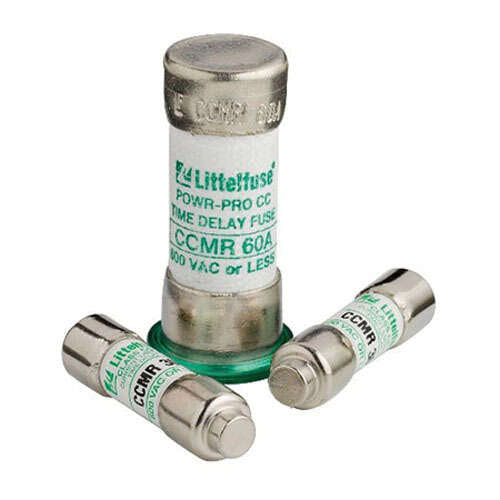

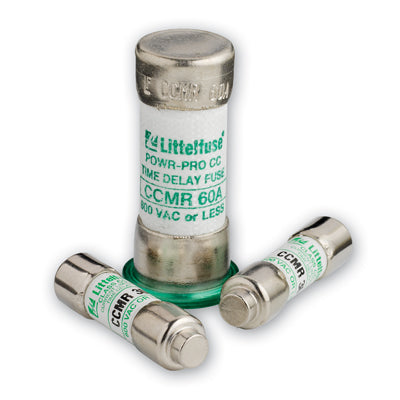

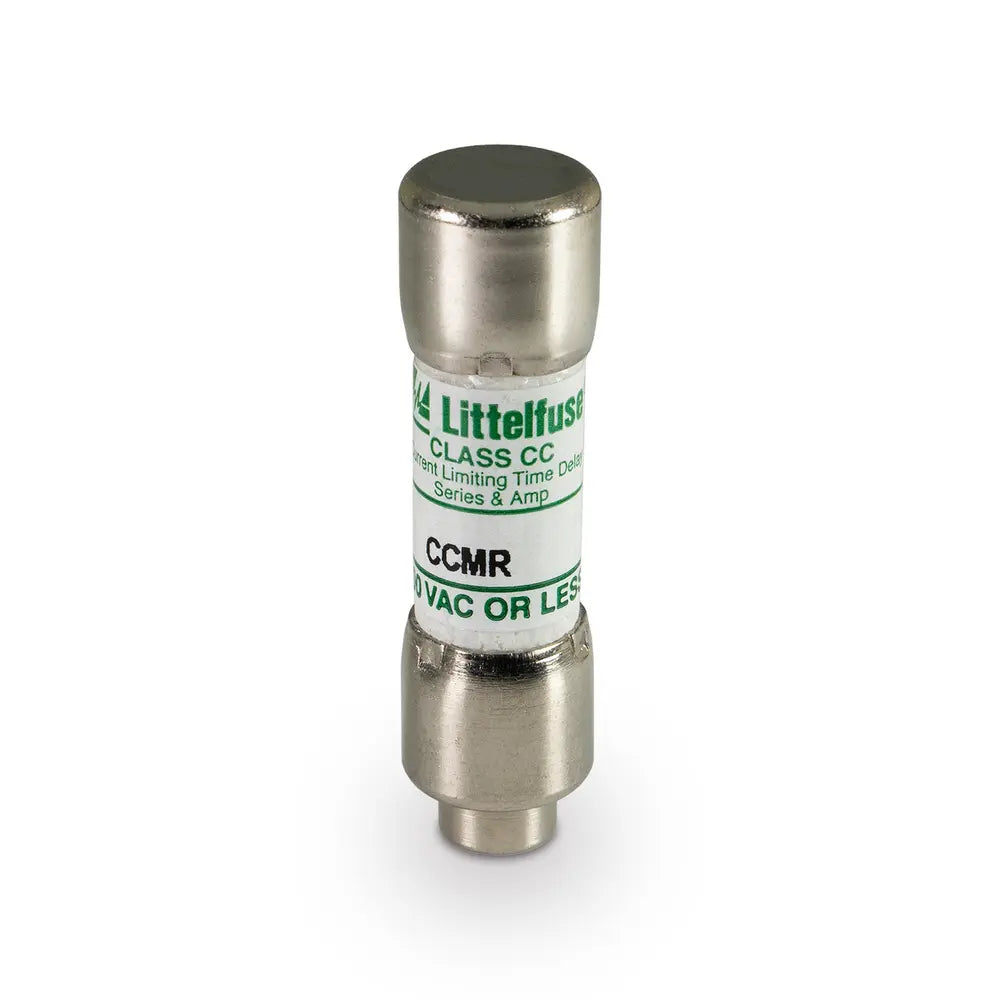

Littelfuse ccmr003.txp class cc dual-element time-delay fuse 3 a 600 vac/300 vdc

Product Description

The Littelfuse CCMR003.TXP is a time delay fuse specifically designed for motor protection. It is suited for circuits up to three amperes and operates at a voltage rating of six hundred volts alternating current and three hundred volts direct current. The fuse provides reliable protection against overcurrent conditions, making it ideal for branch circuits.

• Time delay feature prevents nuisance blowing due to inrush currents.
• Rated for a maximum interrupting capacity of two hundred kA.
• Ferrule terminal and cartridge body for easy installation.

Product Highlights

Utilizing POWR-PRO technology, this fuse is capable of handling motor starting currents while preventing damage to equipment.

Product Information

Standard Information

• Manufacturer: Littelfuse
• Type: Dual Element

Technical Specifications

• Voltage Rating: 600 VAC/300 VDC
• Amperage Rating: 3 A
• Class: CC
• Body Size: 0.41 in dia x 1.5 in length
• Interrupt Rating: 20/200 kA
• Standard: UL 248-4 | CSA LR29862
• Country of Origin: Mexico
