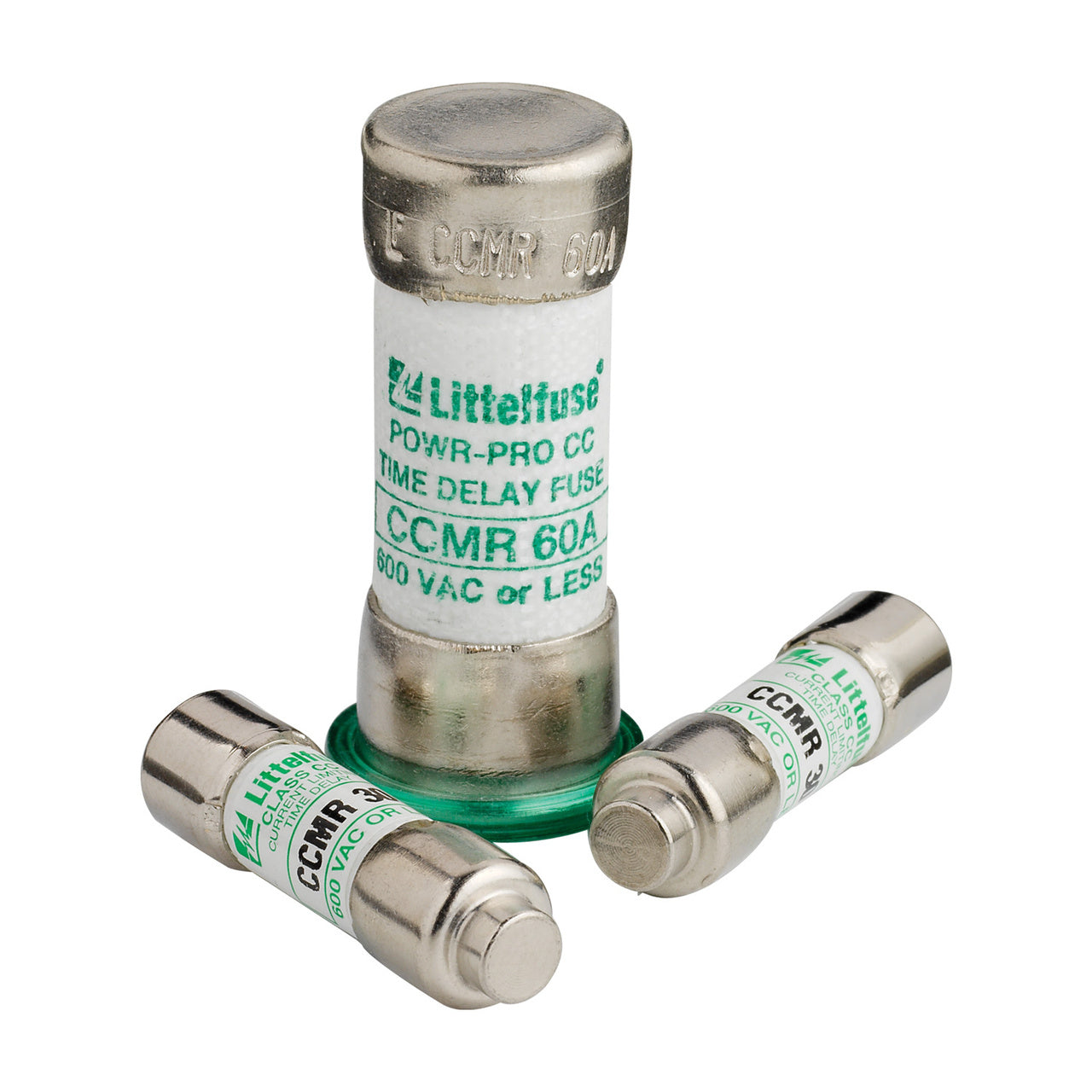

LITTELFUSE CCMR001.TXP Time Delay Fuse 600V 1 Amp Class CC

Product Description

The Littelfuse CCMR001.TXP Time Delay Fuse offers robust overcurrent protection tailored for motors and branch circuits. Engineered to handle sustained starting currents of small motors, this Class CC fuse is suited for applications requiring a 600 volt and 1 amp configuration.

• Optimized for space-limited applications.
• Highly current-limiting for circuit protection.
• Compact design for integration ease.

Product Highlights

This 1 Amp, 600V time-delay fuse stands out in the industry due to its dual-element design which provides reliable motor protection and minimizes damage during current spikes. It features a compact cartridge body, measuring 0.41 inches in diameter by 1.5 inches length.

Product Information

Standard Information

• Manufacturer: Littelfuse
• UPC: 079458968118

Technical Specifications

• Type: Class CC Time Delay Fuse
• Amperage: 1 Amp
• Voltage Rating: 600 VAC/250 VDC
• Interrupt Rating: 200,000 amps at 600 VAC
• Body Size: 0.41 in x 1.5 in
• Frequency: 50/60 Hz
• Mounting Type: Holder
• Terminal Type: Ferrule
